Features

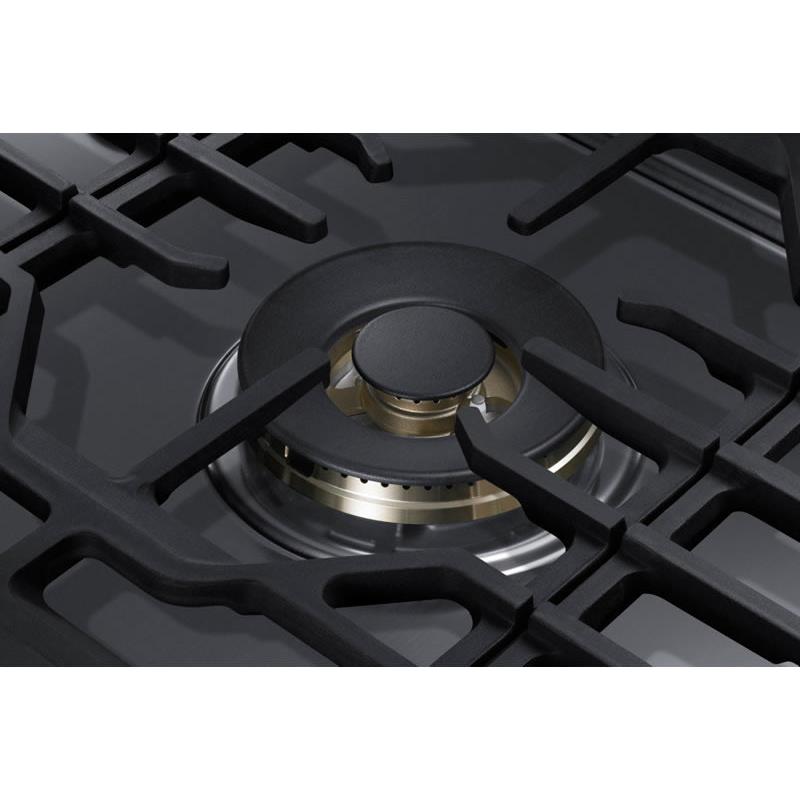

22K BTU TRUE DUAL POWER BURNER
Two independent heating elements offer intense heat and precise control to quickly boil water or temper chocolate.
WI-FI CONNECTIVITY
Monitor and control your cooktop or hood from anywhere.

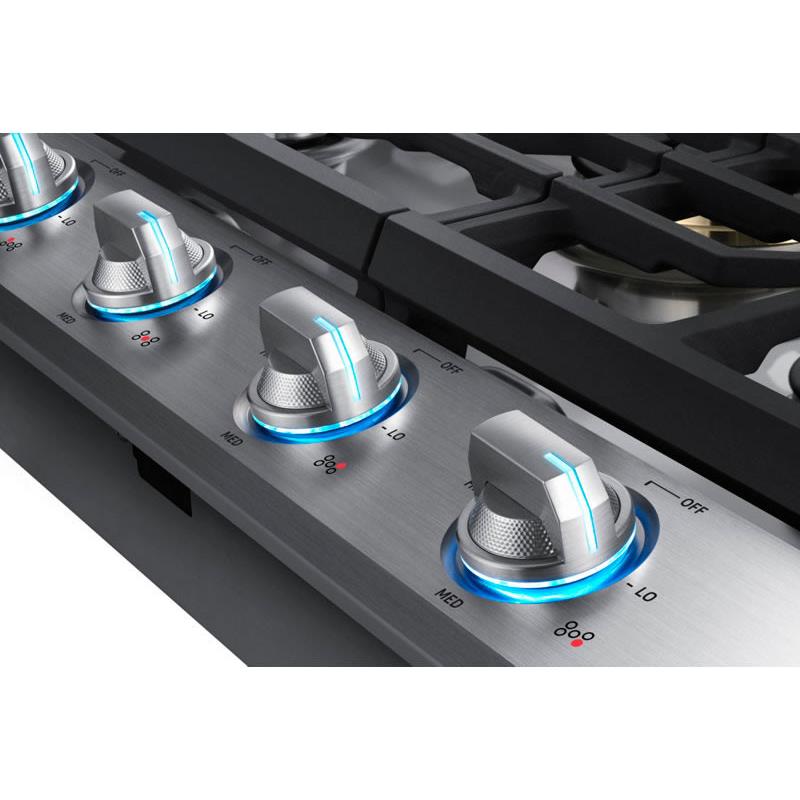

BLUE LED ILLUMINATED KNOBS
Visually lets you know when your cooktop is on, even from a distance.

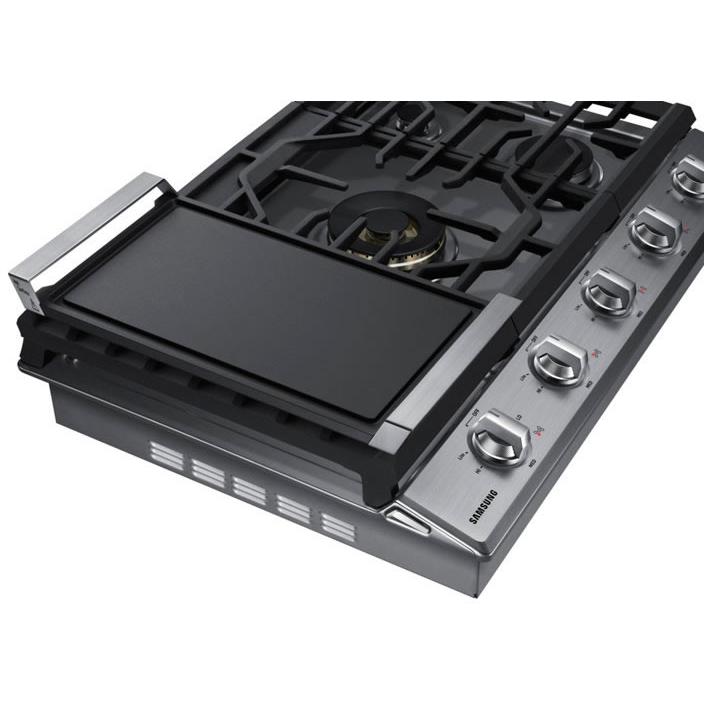

CAST IRON GRIDDLE
Cook breakfast, grill sandwiches, or sauté vegetables on the removable griddle.
WOK GRATE
Easily accommodate a round bottom wok on the custom wok grate. Its circular design fits snug around the burner so that heat is quickly and evenly distributed.
Additional Features
ANALOG CONTROLS WITH DIGITAL WI-FI AND BLUETOOTH® TECHNOLOGY
The ultimate combination of analog comfort and digital technology delivers exceptional cooking performance.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left front: 9.5K BTU
• Left rear: 9.5K BTU
• Right front: 13K BTU
• Right rear: 5K BTU (Simmer)
• Center: 22K BTU (True Dual)
• Left rear: 9.5K BTU
• Right front: 13K BTU
• Right rear: 5K BTU (Simmer)
• Center: 22K BTU (True Dual)
Burners
Sealed
Surface Features
Cast iron 3-piece grates
Features
Technologies
• Ready2Fit™ Guarantee
• Analog Controls with Digital Wi-Fi and Bluetooth® Technology
• Analog Controls with Digital Wi-Fi and Bluetooth® Technology
Wi-Fi
Yes
Clock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
• Total power: 59K BTU
• Knob lighting: backlit and indicator
• Knob lighting: backlit and indicator
Electrical Information
Information
Power source: 120V / 60 Hz / 1A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• Cast iron griddle
• Wok grate
• LP conversion kit
• Wok grate
• LP conversion kit
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.57 inch(es) / 14.15 cm
Depth
22.33 inch(es) / 56.73 cm
Weight
75.79 lb(s) / 34.38 kg
Additional Dimensions
• Cut-out width: 28-1/2"
• Cut-out height: 3-1/8"
• Cut-out depth: 19-5/8"
• Cut-out height: 3-1/8"
• Cut-out depth: 19-5/8"
Shipping Dimensions
Width
34.69 inch(es) / 88.11 cm
Height
10.63 inch(es) / 26.99 cm
Depth
25.63 inch(es) / 65.09 cm
Weight
84 lb(s) / 38.1 kg
Warranty
Warranty
One (1) Year on all parts and labor
UPC
UPC#
887276281704
