Features

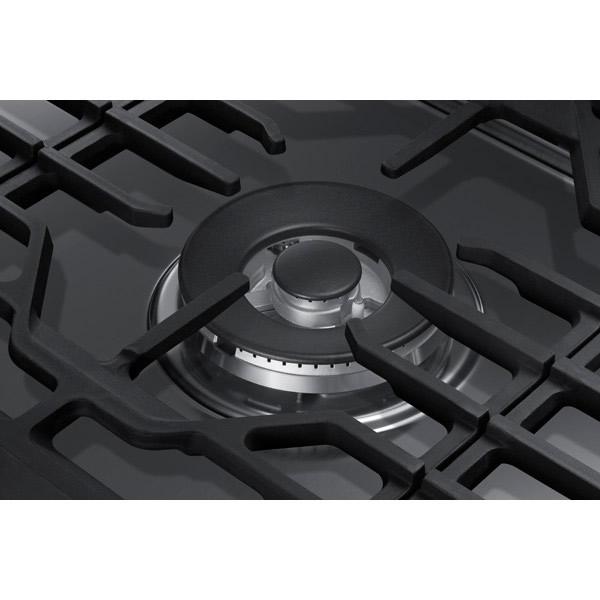

19K POWER BURNER
Powerful burner boils water faster.

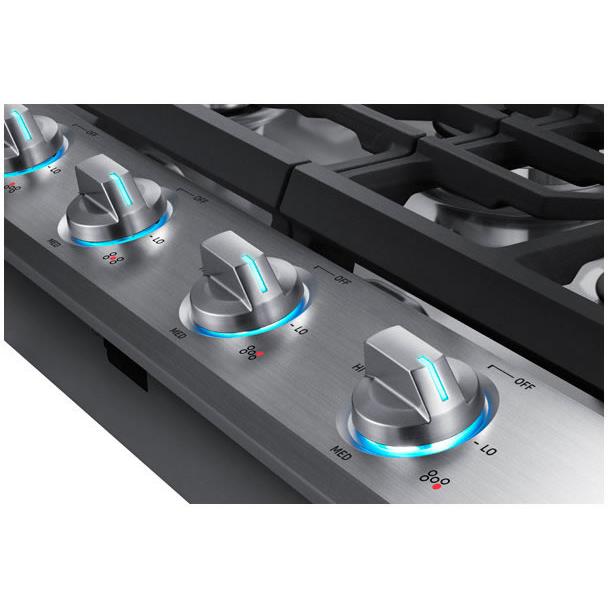

BLUE LED ILLUMINATED KNOBS
Visually lets you know when your cooktop is on, even from a distance.
WI-FI CONNECTIVITY
Monitor and control your cooktop or hood from anywhere.

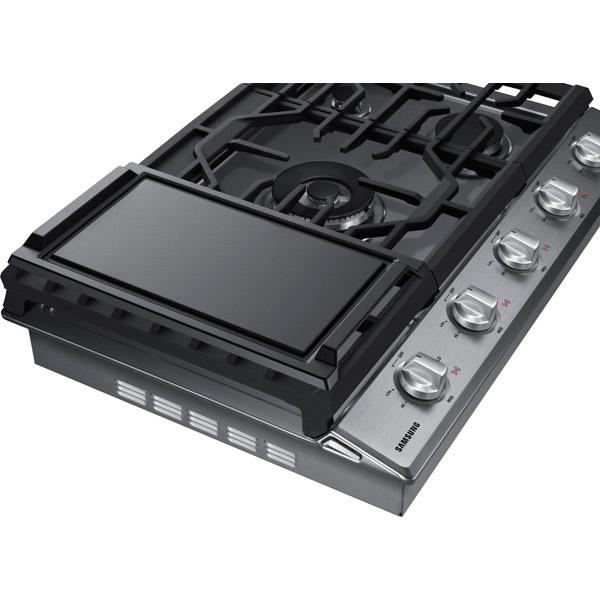

GRIDDLE
Cook breakfast foods, grill sandwiches, or sauté vegetables on the griddle.
Additional Features
CAST IRON 3-PIECE GRATES
Three cast iron grates allow for quick and easy clean up.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left front: 9.5K BTU
• Left rear: 9.5K BTU
• Right front: 13K BTU
• Right rear: 5K BTU (Simmer)
• Center: 19K BTU (Dual)
• Left rear: 9.5K BTU
• Right front: 13K BTU
• Right rear: 5K BTU (Simmer)
• Center: 19K BTU (Dual)
Burners
Sealed
Surface Features
Cast iron 3-piece grates
Features
Technologies
Ready2Fit™ Guarantee
Wi-Fi
Yes
Clock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
• Total power: 56K BTU
• Knob lighting: backlit and indicator
• Knob lighting: backlit and indicator
Electrical Information
Information
Power source: 120V / 60 Hz / 1A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• Aluminum griddle
• LP conversion kit
• LP conversion kit
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.57 inch(es) / 14.15 cm
Depth
22.33 inch(es) / 56.73 cm
Weight
64.79 lb(s) / 29.39 kg
Additional Dimensions
• Cut-out width: 28-1/2"
• Cut-out height: 3-1/8"
• Cut-out depth: 19-5/8"
• Cut-out height: 3-1/8"
• Cut-out depth: 19-5/8"
Shipping Dimensions
Width
34.69 inch(es) / 88.11 cm
Height
10.63 inch(es) / 26.99 cm
Depth
25.63 inch(es) / 65.09 cm
Weight
73 lb(s) / 33.11 kg
Warranty
Warranty
One (1) Year on all parts and labor
UPC
UPC#
887276281681
