Features
SANITIZE OPTION
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
ENHANCED DRYING RESULTS WITH MAXBOOST DRY™
MaxBoost Dry™ technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.
SAVES OVER 4000 GALLONS OF WATER EVERY YEAR
By avoiding hand washing and putting your dishes straight in the dishwasher, not only will you get great cleaning results, you can save over 4000 gallons of water per year.
DISHSENSE® SENSOR TECHNOLOGY
Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
CLEANS HARD-TO-REACH SPOTS
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean.
Additional Features
GET BETTER CLEANING RESULTS WITH CLEANBOOST™ TECHNOLOGY
Our patented CleanBoost™ Technology premixes water and detergent, dissolving detergent 6x faster helping to remove hard-to-clean and baked-on foods.
COMPLETE CLEAN FROM EVERY ANGLE WITH ORBITCLEAN®
OrbitClean® wash system uses a rotating wash arm with multi-directional spray patterns to provide maximum coverage without using more water.
KEEP YOUR KITCHEN QUIET WITH 47 DBA
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.

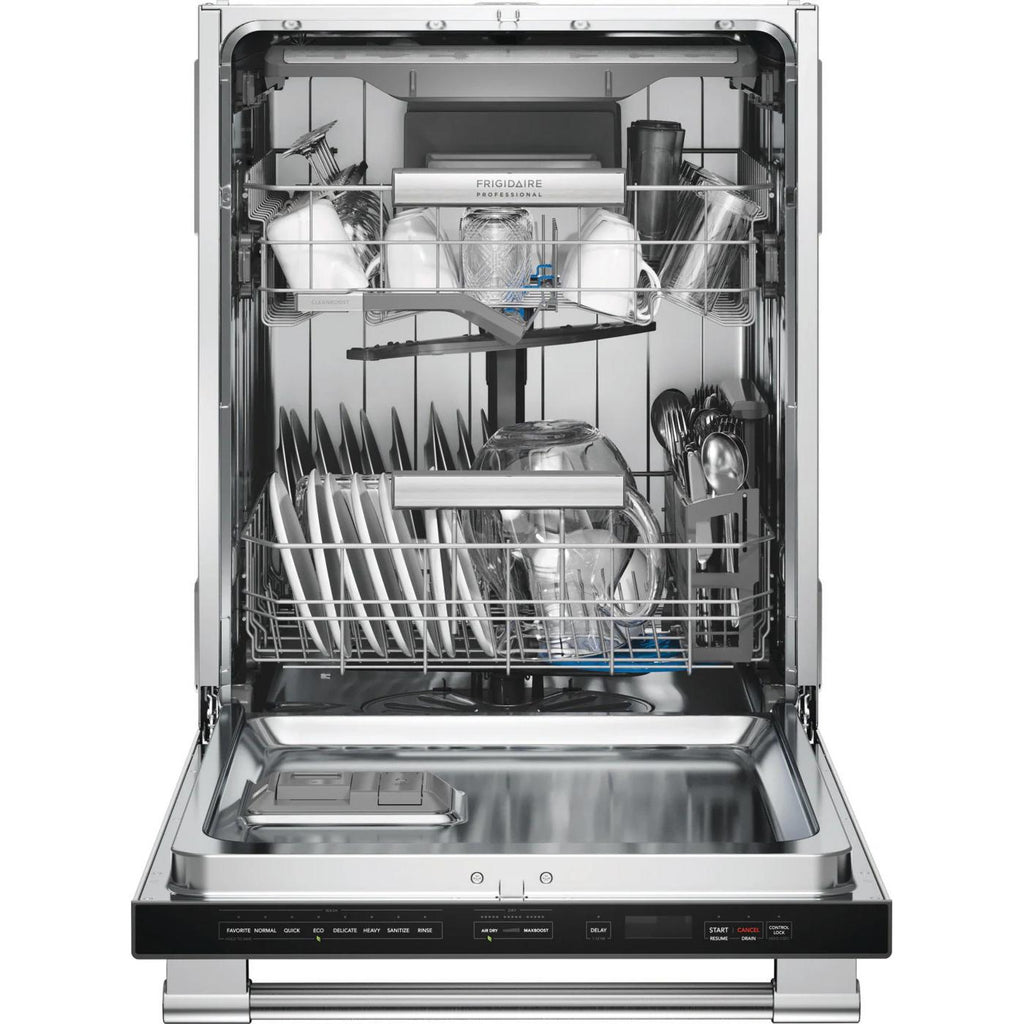

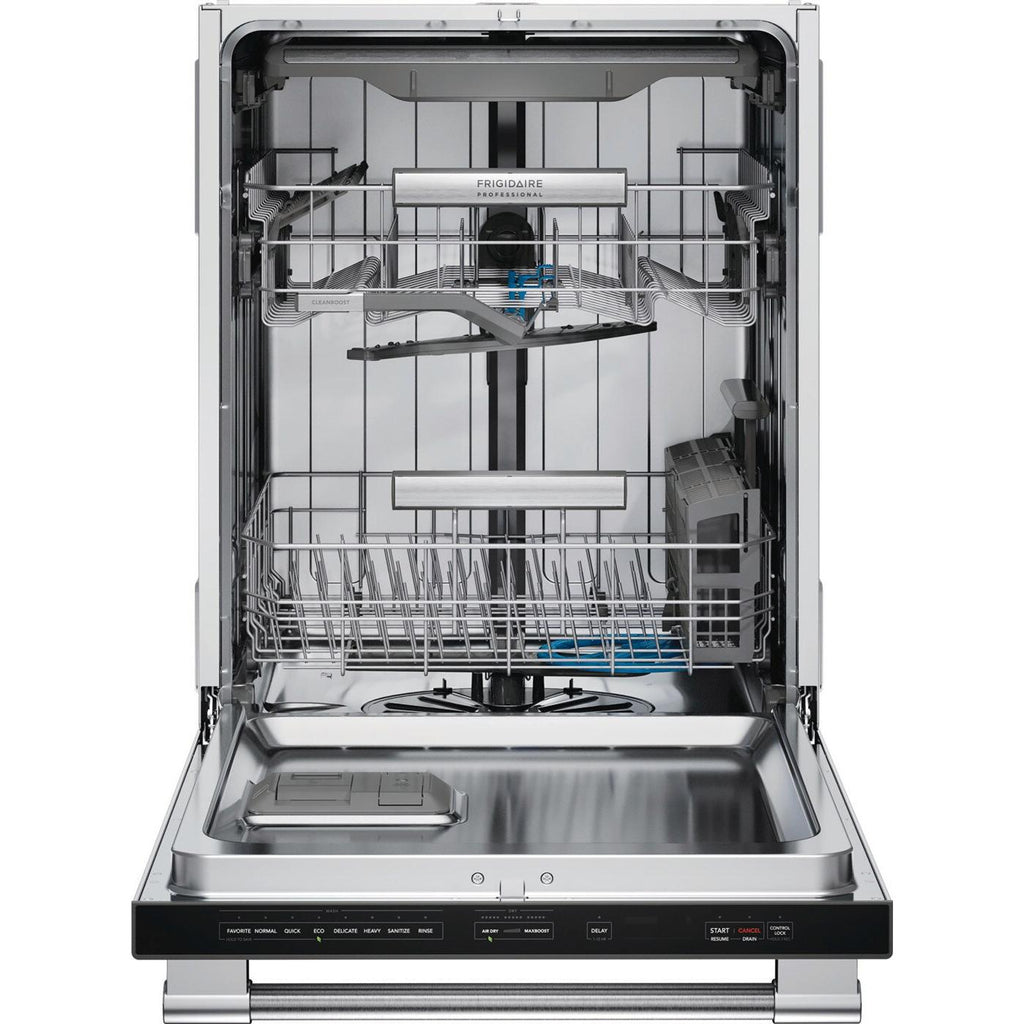

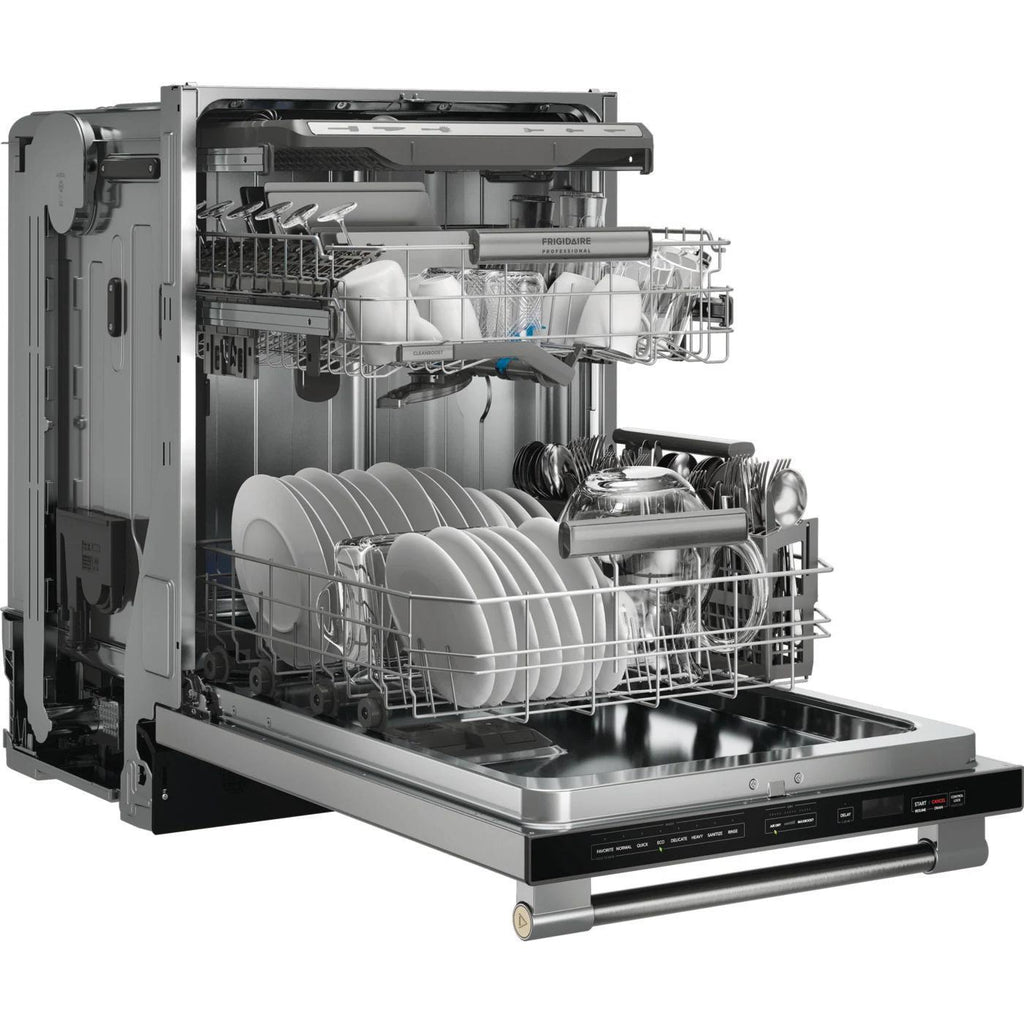

EASILY FITS DISHES OF ALL SIZES WITH AN ADJUSTABLE RACK
Make loading the dishwasher easier with an adjustable rack and enough space to fit large items.
PROTECTING YOUR FLOORS AGAINST WATER LEAKS
In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher.
POWERFUL 30-MINUTE CLEAN
Get a powerful clean, fast in just 30 minutes.

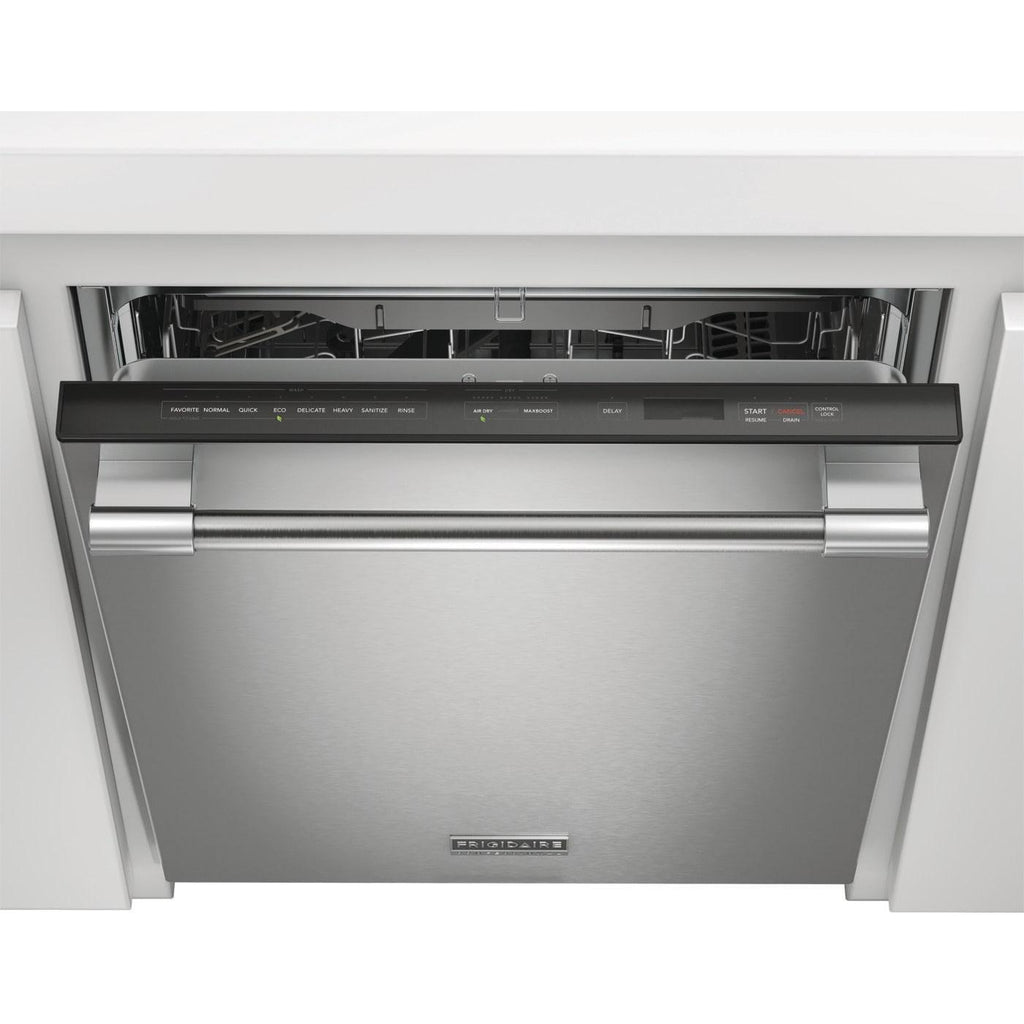

PREMIUM CAPACITIVE TOUCH USER INTERFACE
Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dishes.
CONVENIENT STATUS INDICATOR FLOOR LIGHT
Convenient LED floor light shows cycle status- blue when your dishes are washing and white when they are clean.

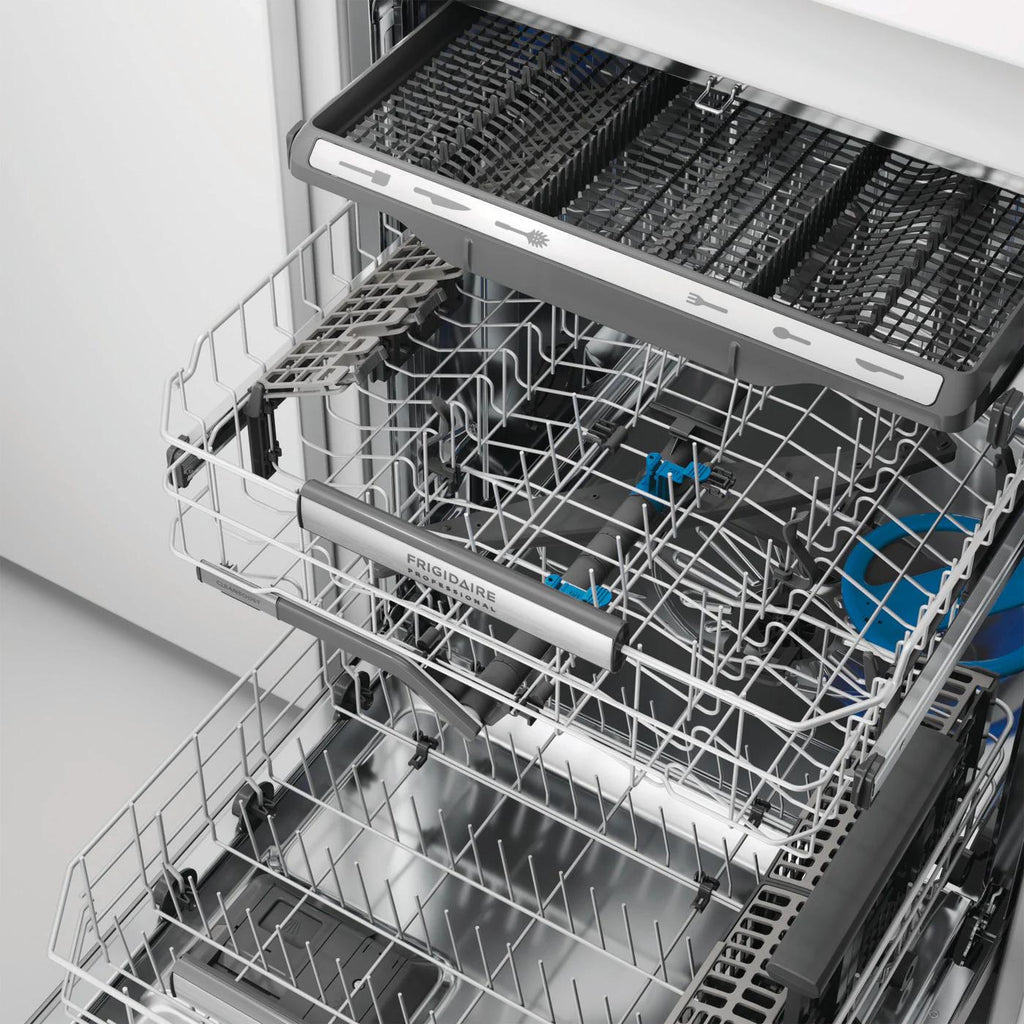

THIRD LEVEL RACK
Save time loading and unloading with a third level rack that easily fits silverware, cooking utensils and tools.
Specifications
General
Type
Built-In
Color
Stainless Steel
Place Settings
14
Tub Material
Stainless Steel
Silence Rating
47 dB
Cycle Information
Number of Cycles
8
Wash Cycles
• China Crystal
• Energy Saver
• Favorite
• Heavy
• Normal
• Quick
• Rinse Only
• Sanitize
• Energy Saver
• Favorite
• Heavy
• Normal
• Quick
• Rinse Only
• Sanitize
Options
• Air Dry
• Dry - Air
• Dry - Heat
• Dry - Max
• Drying System: Even Dry
• Heated Dry
• Start/Cancel
• Dry - Air
• Dry - Heat
• Dry - Max
• Drying System: Even Dry
• Heated Dry
• Start/Cancel
Features
Technologies
• CleanBoost™ Technology
• DishSense® Sensor Technology
• OrbitClean®
• DishSense® Sensor Technology
• OrbitClean®
Delay Start Information
1-12 Hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Detergent Dispenser
• Filter Trap: Removable
• Filtered Water: 100 %
• Leak Detection System
• Multi-Speed Motor
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Status Indicator Floor Beam
• 5 Wash Levels
• Wash System: Direct Feed
• Upper Rack:
• Cup Shelf
• Fold-Down
• Maximum Height Clearance: 10 3/8"
• Minimum Height Clearance: 8 1/2"
• Rack Coating: Nylon
• Rack Handles
• Rack Type: Deluxe
• Stemware Holder Yes
• Targeted Wash Zone
• Lower Rack:
• Fold-Down
• Maximum Height Clearance: 3 1/4"
• Minimum Height Clearance: 11 1/4"
• Number of Silverware Basket: 1
• Number of Silverware Basket Lids: 2
• Rack Coating: Nylon
• Rack Type: Deluxe
• Filter Trap: Removable
• Filtered Water: 100 %
• Leak Detection System
• Multi-Speed Motor
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Status Indicator Floor Beam
• 5 Wash Levels
• Wash System: Direct Feed
• Upper Rack:
• Cup Shelf
• Fold-Down
• Maximum Height Clearance: 10 3/8"
• Minimum Height Clearance: 8 1/2"
• Rack Coating: Nylon
• Rack Handles
• Rack Type: Deluxe
• Stemware Holder Yes
• Targeted Wash Zone
• Lower Rack:
• Fold-Down
• Maximum Height Clearance: 3 1/4"
• Minimum Height Clearance: 11 1/4"
• Number of Silverware Basket: 1
• Number of Silverware Basket Lids: 2
• Rack Coating: Nylon
• Rack Type: Deluxe
Electrical Information
Information
120 V, 15 A
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Information
• cUL Listed
• Meets ASSE 1006 Requirements
• Meets ASSE 1006 Requirements
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.75 inch(es) / 85.73 cm
Depth (Without Handle)
24.25 inch(es) / 61.6 cm
Depth (Including Handle)
26.69 inch(es) / 67.79 cm
Additional Dimensions
• Maximum Height: 35 3/4"
• Depth With Door Open: 50 1/4"
• Depth With Door Open: 50 1/4"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
12505116360
