Description
The Bosch 500 Series 30-inch Freestanding Gas Range combines versatile cooking performance with a powerful Double Ring Burner, providing flexible heat control for a variety of cooking needs.
Features
INDUSTRIAL-CHIC DESIGN

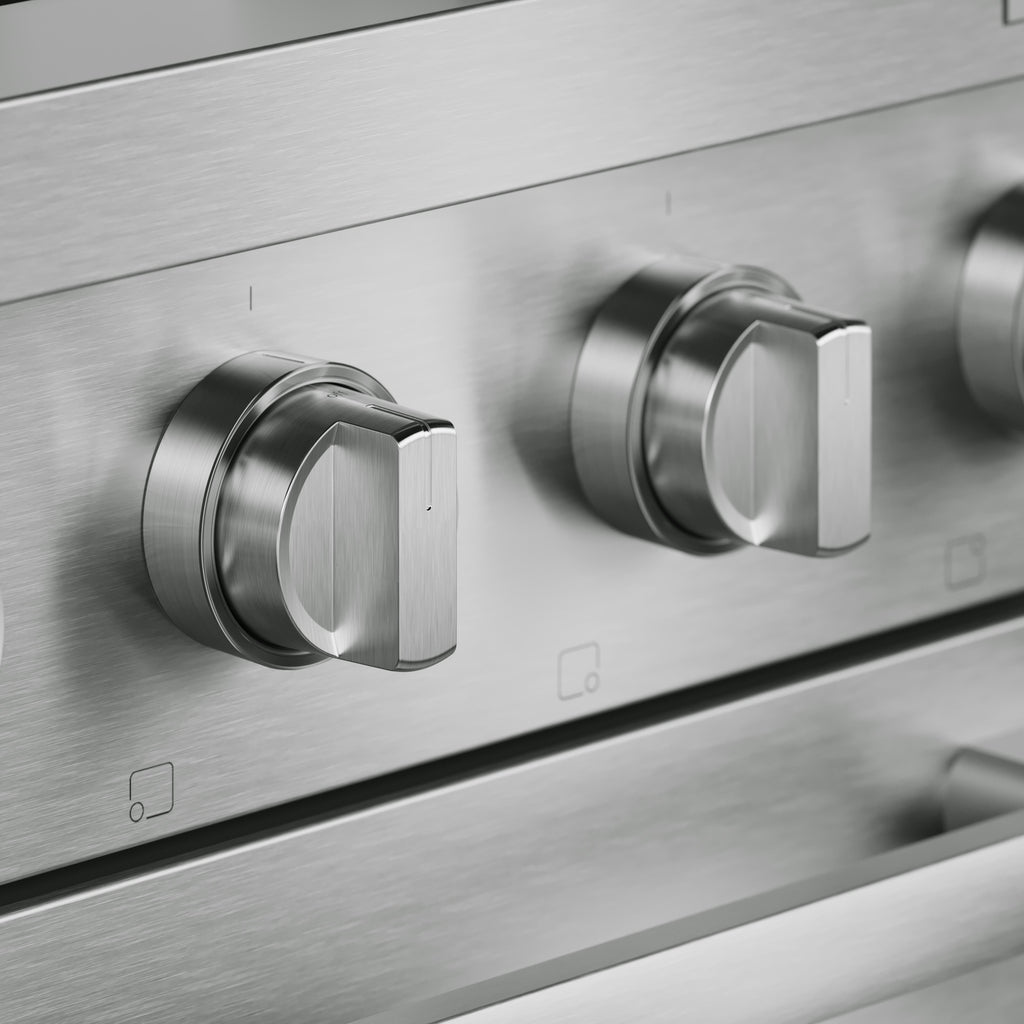

The bold freestanding design with pedestal feet and heavy duty knobs makes the industrial-style range a focal point in any kitchen.

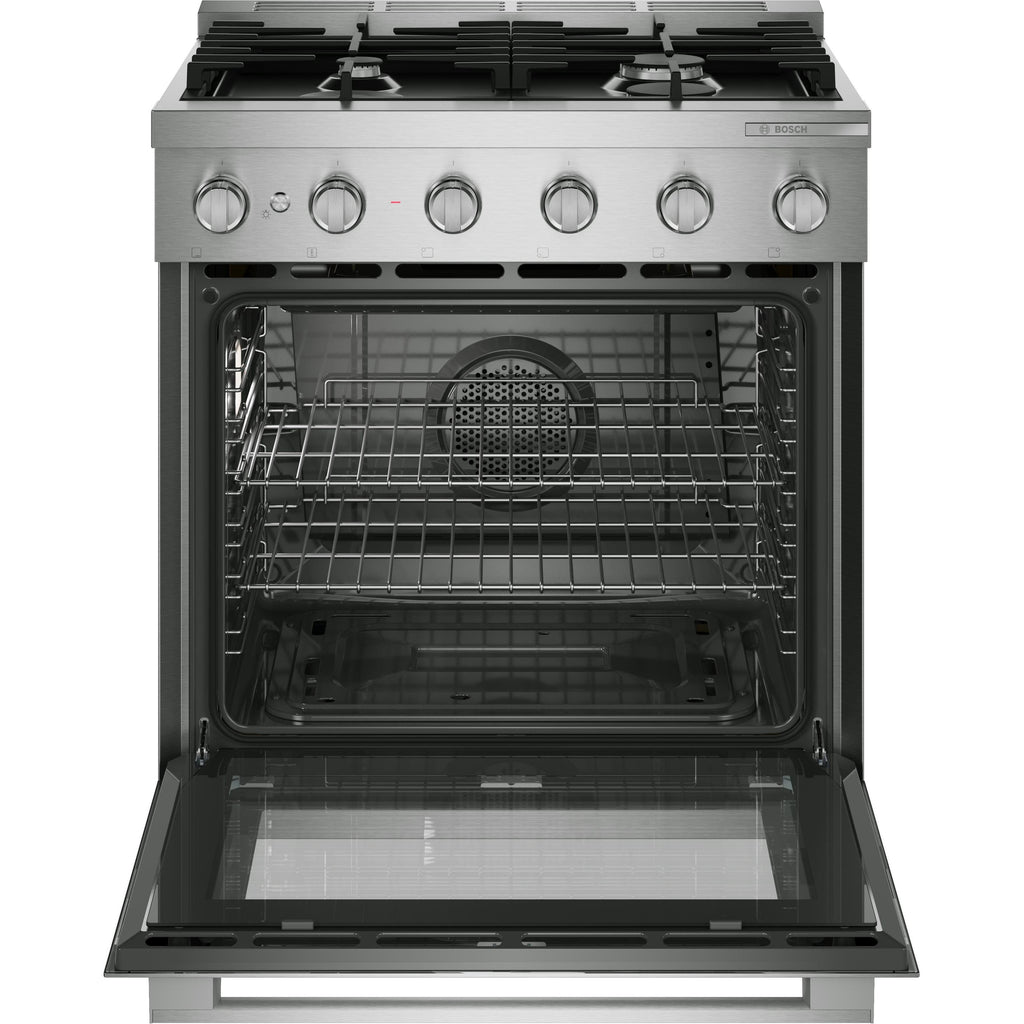

EVEN COOKING: A THIRD HEATING ELEMENT IN THE BACK AND A FAN CIRCULATES HEAT EVENLY
A third heating element in the back and a fan circulates heat evenly so you get evenly golden results no matter where you place your pan.
BROIL MODE: USES INTENSE HEAT RADIATED FROM THE UPPER ELEMENT AND DELIVERS THE PERFECT CHAR, SEAR, AND GRILL WITHOUT THE MESS
Broil mode uses intense heat radiated from the upper element and delivers the perfect char, sear, and grill without the mess. It is perfect for meats and bubbling crusts on casseroles.
DISHWASHER-SAFE GRATES
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Additional Features

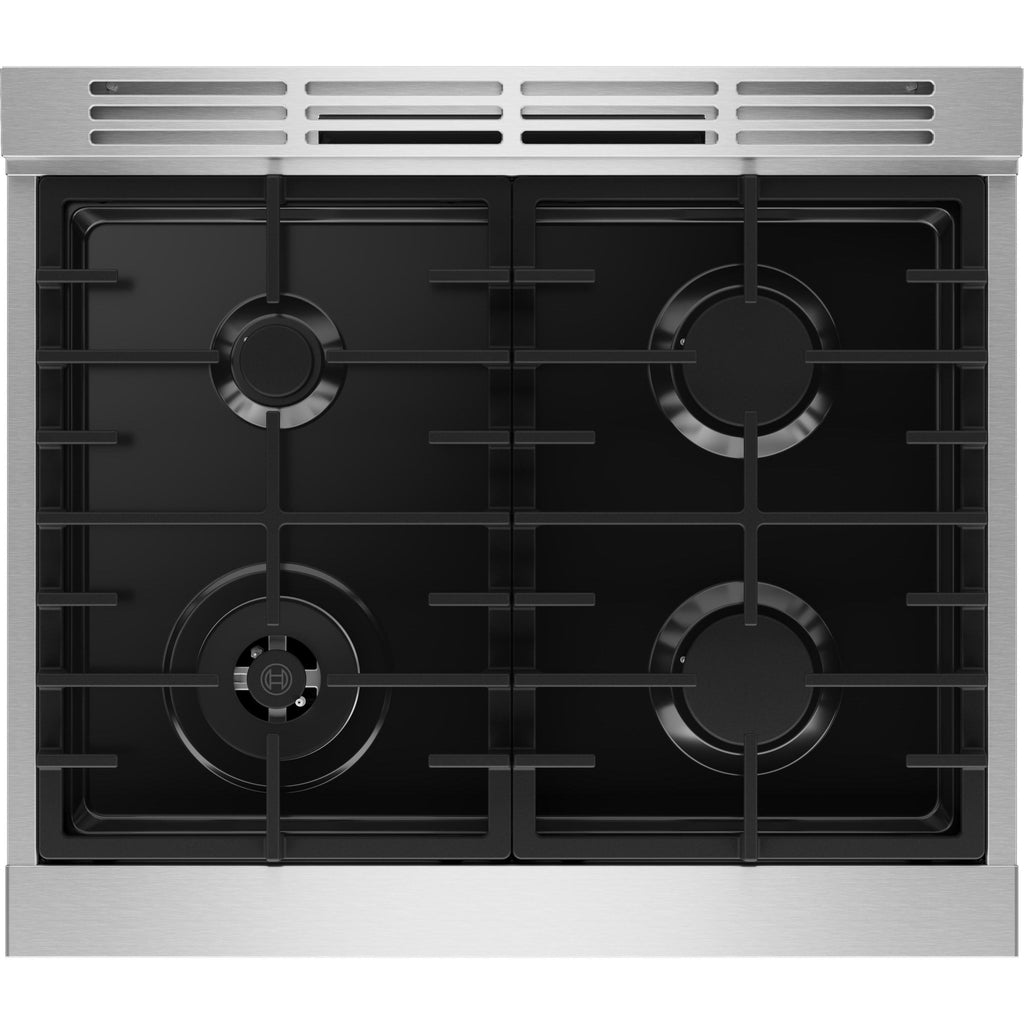

CONTINUOUS GRATE DESIGN
Continuous Cast Iron Grates allows you to easily slide heavy pots and pans from burner to burner.
Specifications
General
Series Name
500 Series
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Manual Clean
Cooktop
Burners/Elements
4
Burners/Elements Output
• Total Cooktop Power (NG / LP): 49,000 / 47,000 BTU
• Front Left Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Left Burner Power (NG / LP): 5,000 / 5,000 BTU
• Back Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Left Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Left Burner Power (NG / LP): 5,000 / 5,000 BTU
• Back Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
4.9 cu. ft.
Number of Ovens
Single
Programs
• Broil
• Keep Warm
• Slow Cook
• Proof
• Convection Bake
• Bake
• Keep Warm
• Slow Cook
• Proof
• Convection Bake
• Bake
Features
Technologies
Convection Technology
Convection
Yes
Oven Light
Yes
Additional Information
• Soft-close oven door
• Cast iron grates with rubber feet
• Porcelain and steel cooktop surface materials
• Cast iron grates with rubber feet
• Porcelain and steel cooktop surface materials
Electrical Information
Information
• 120 V
• 15 A circuit breaker
• 60 Hz
• US 3-prong plug
• 60" cord length (with plug)
• 15 A circuit breaker
• 60 Hz
• US 3-prong plug
• 60" cord length (with plug)
Accessories
Included
• LP conversion kit
• 2 standard oven racks
• Anti-tip protection kit
• 2 standard oven racks
• Anti-tip protection kit
Optional
• HEZ9TK30UC — 30" Range Toe Kick, Stainless Steel
• HEZ90H30UC — 30" Rear Vent Trim Extension, Stainless Steel
• HEZ90K30UC — 30" Low Backguard, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
• HEZ90H30UC — 30" Rear Vent Trim Extension, Stainless Steel
• HEZ90K30UC — 30" Low Backguard, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
Dimensions
Class Width
30"
Width
29.92 inch(es) / 76.0 cm
Height
35.35 inch(es) / 89.8 cm
Depth (Without Handles)
24.65 inch(es) / 62.6 cm
Depth (Including Handles)
26.81 inch(es) / 68.1 cm
Weight
192.99 lb(s) / 87.54 kg
Warranty
Warranty
1-year (365-day) limited warranty against defects in materials and workmanship from the date of original delivery, plus a separate 30-day limited warranty against cosmetic defects (finish blemishes, scratches, dents). Repair or replacement at Bosch's option.
