Description

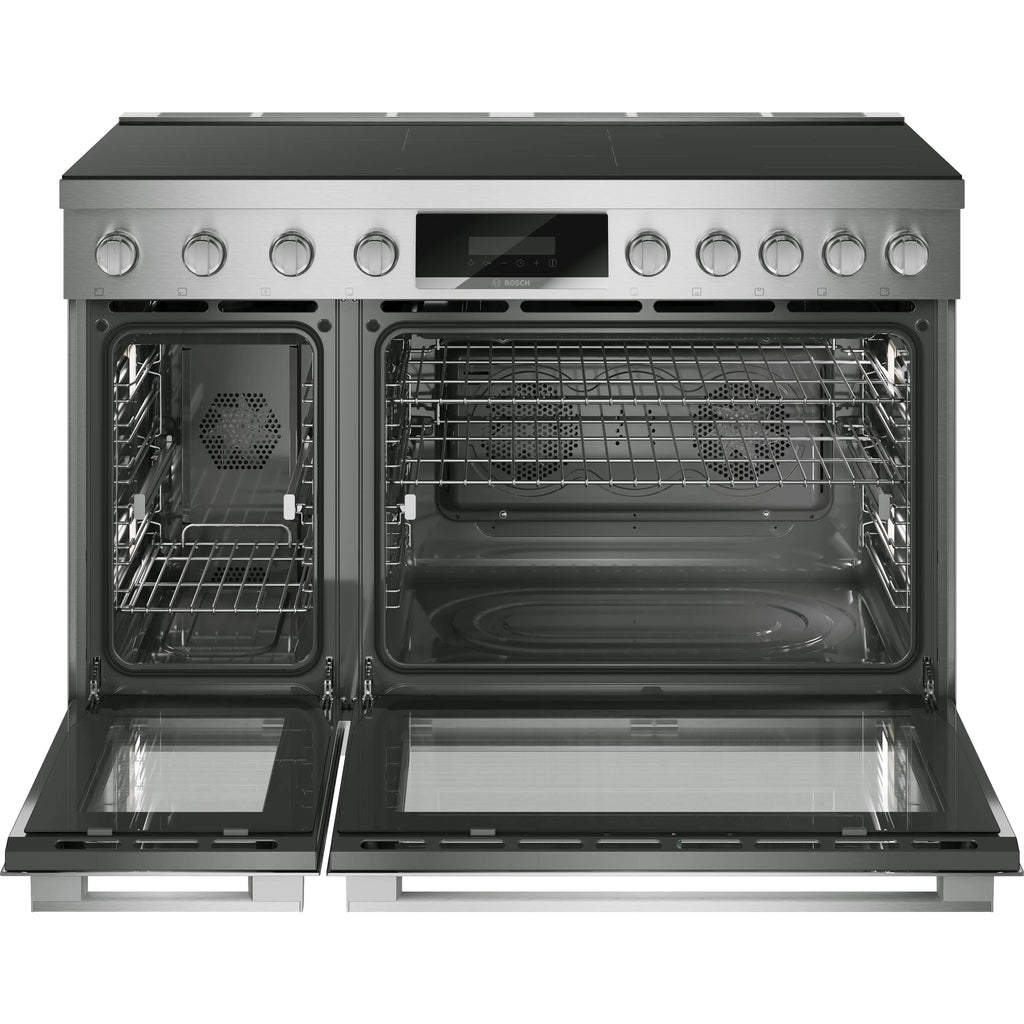

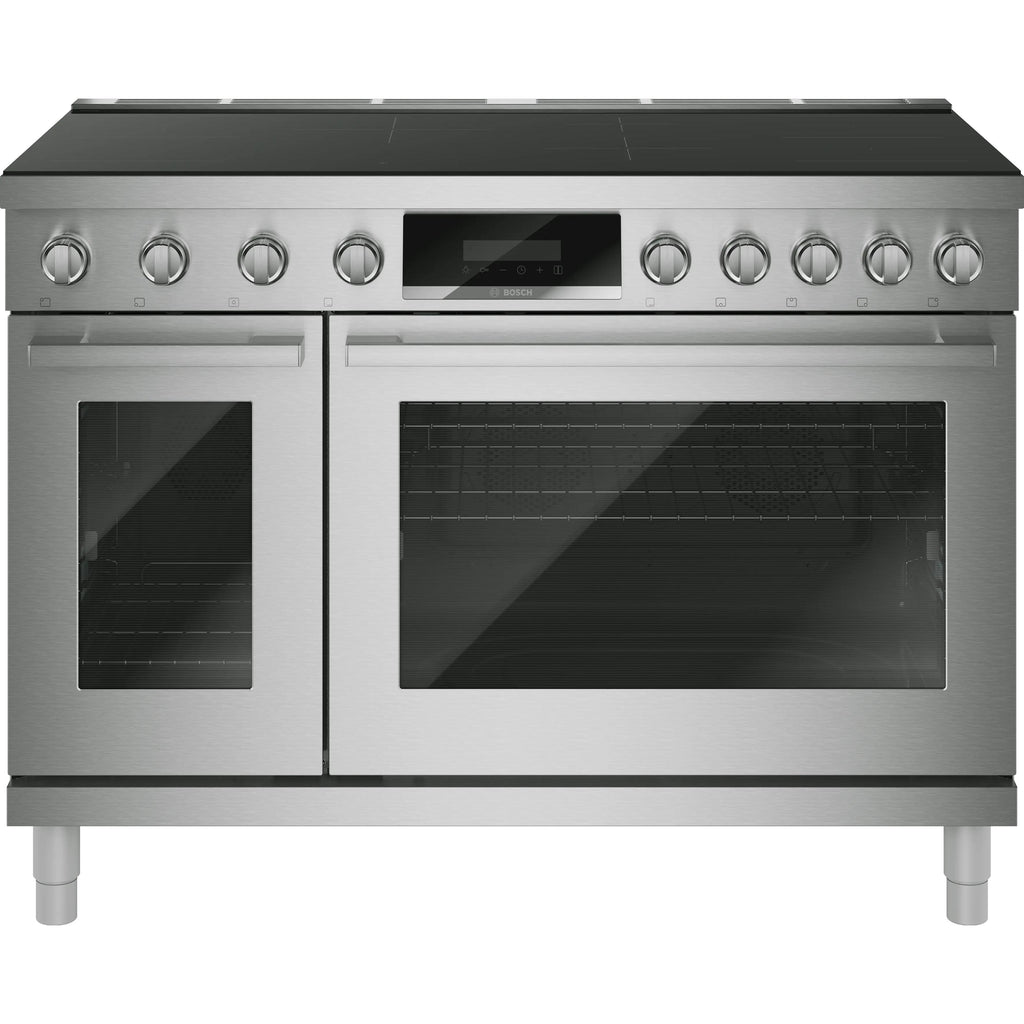

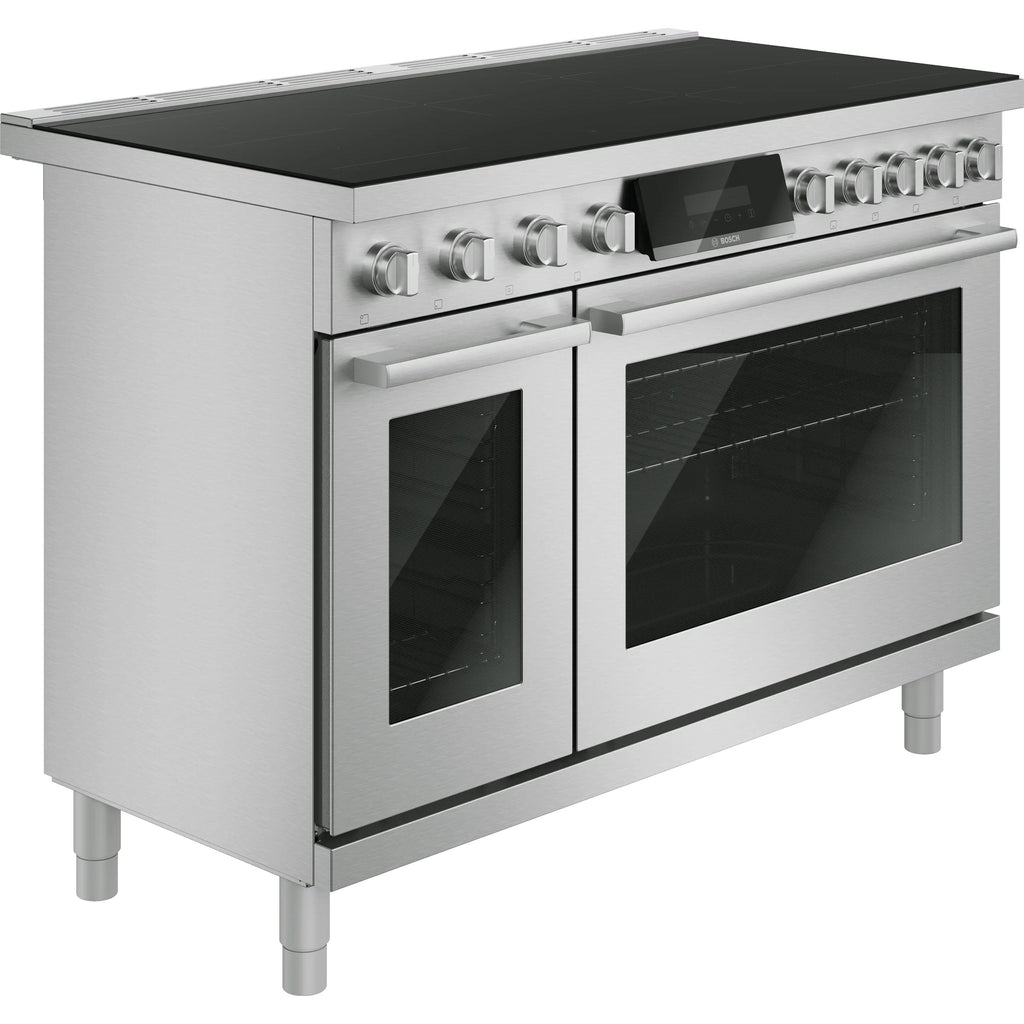

This Bosch 48-inch 800 Series induction range pairs a 7-element induction cooktop, including a best-in-class 5.5 kW element and two CombiZone-capable elements, with a dual-oven cavity for extra cooking flexibility. The 5.4 cu. ft. main oven offers 9 cooking modes, including Air Fry, Convection Multi-Rack, Pizza, and true Convection Bake with a third heating element and rear fan, while a 2 cu. ft. auxiliary oven adds a second cavity for smaller dishes or simultaneous cooking. The frameless, edge-to-edge glass cooktop wipes clean easily and heats cookware directly, cooking faster than gas or electric while staying cool to the touch. Catalytic and steam-assisted cleaning keep both oven cavities easier to maintain, and full-extension telescopic racks in the main oven give smooth access to heavy dishes. The QuietClose door closes gently instead of slamming, and an ergonomic tilted display keeps the controls easy to read while cooking.
Features

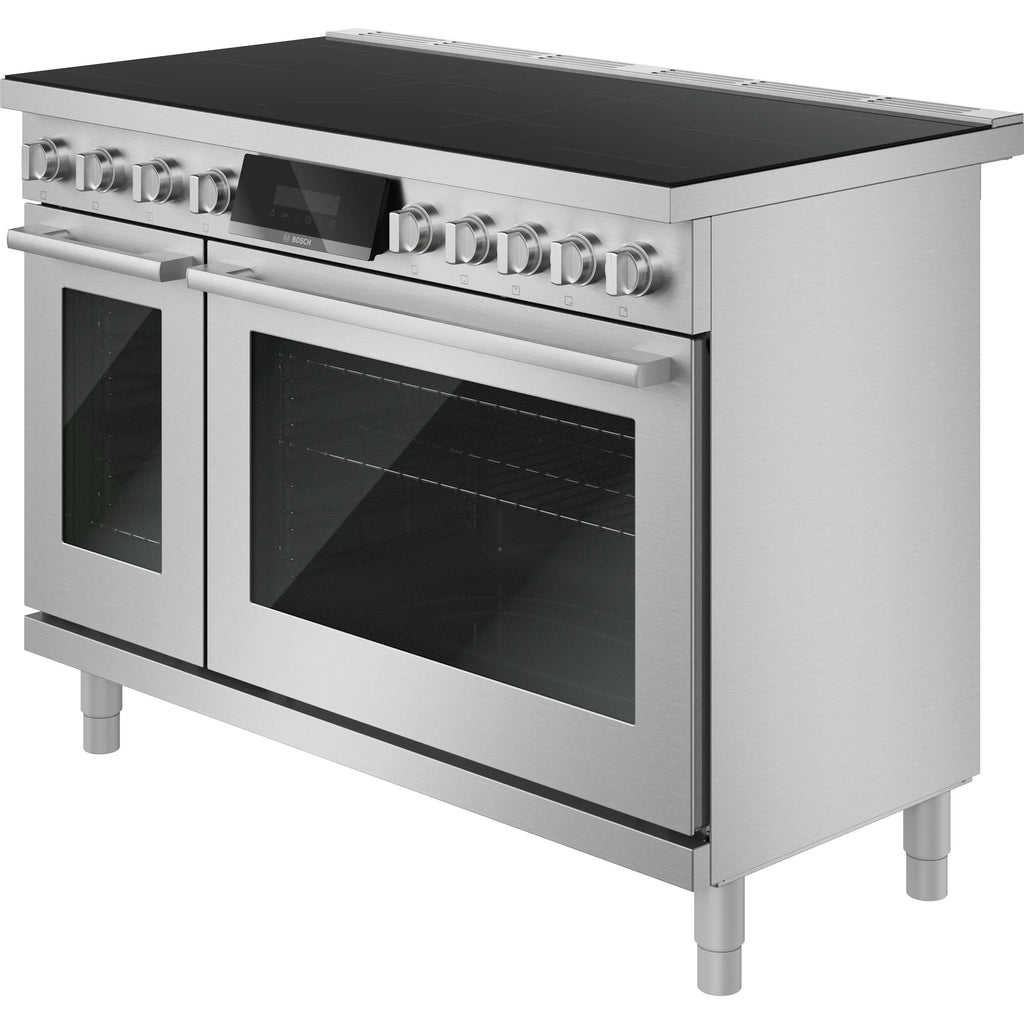

INDUSTRIAL-CHIC DESIGN

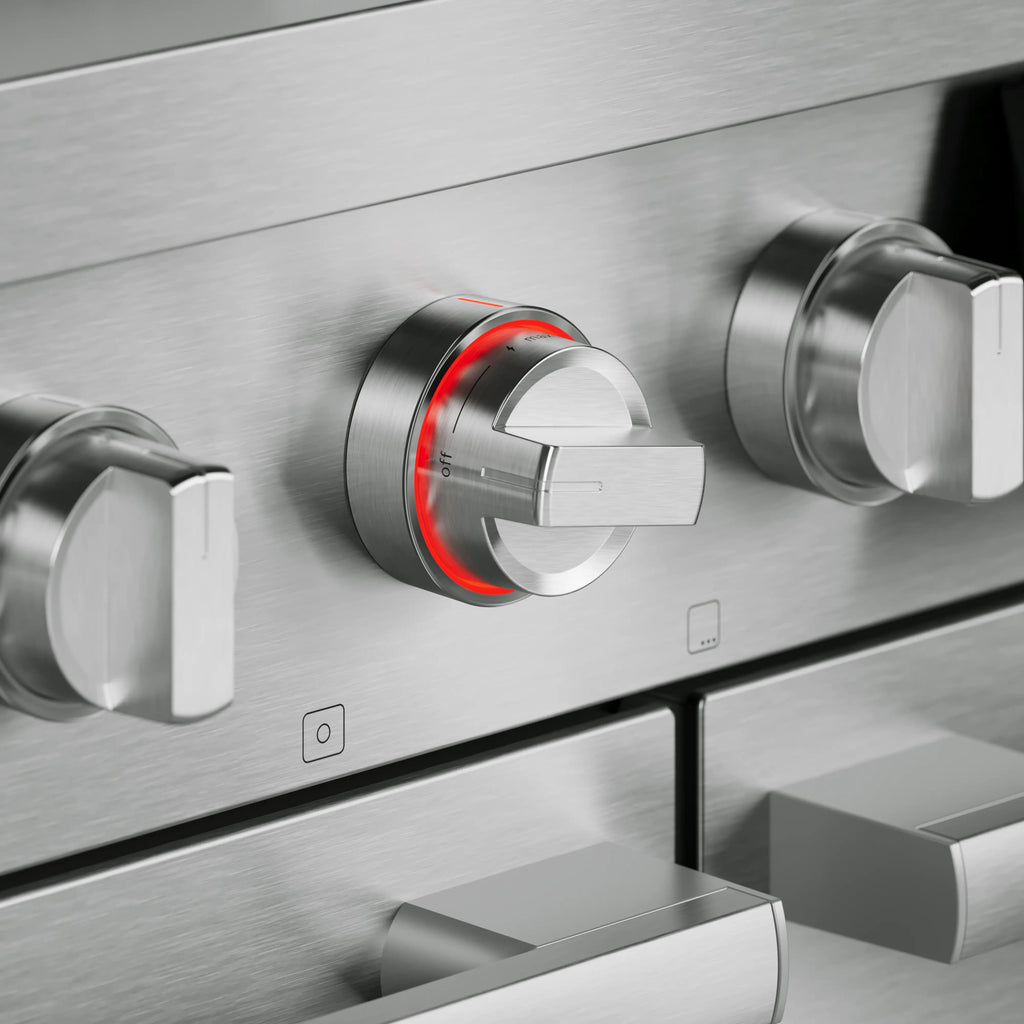

The bold freestanding design with pedestal feet and heavy duty knobs makes the industrial-style range a focal point in any kitchen.
FASTER COOKING WITH INDUCTION
When you place a pan on an induction cooktop and turn it on, an electric current travels through a coiled copper wire, which produces and applies heat directly to your pan. Heating the cookware directly prevents heat loss (plus, the area surrounding your pan remains cool to the touch). You'll also notice the ease of clean-up.

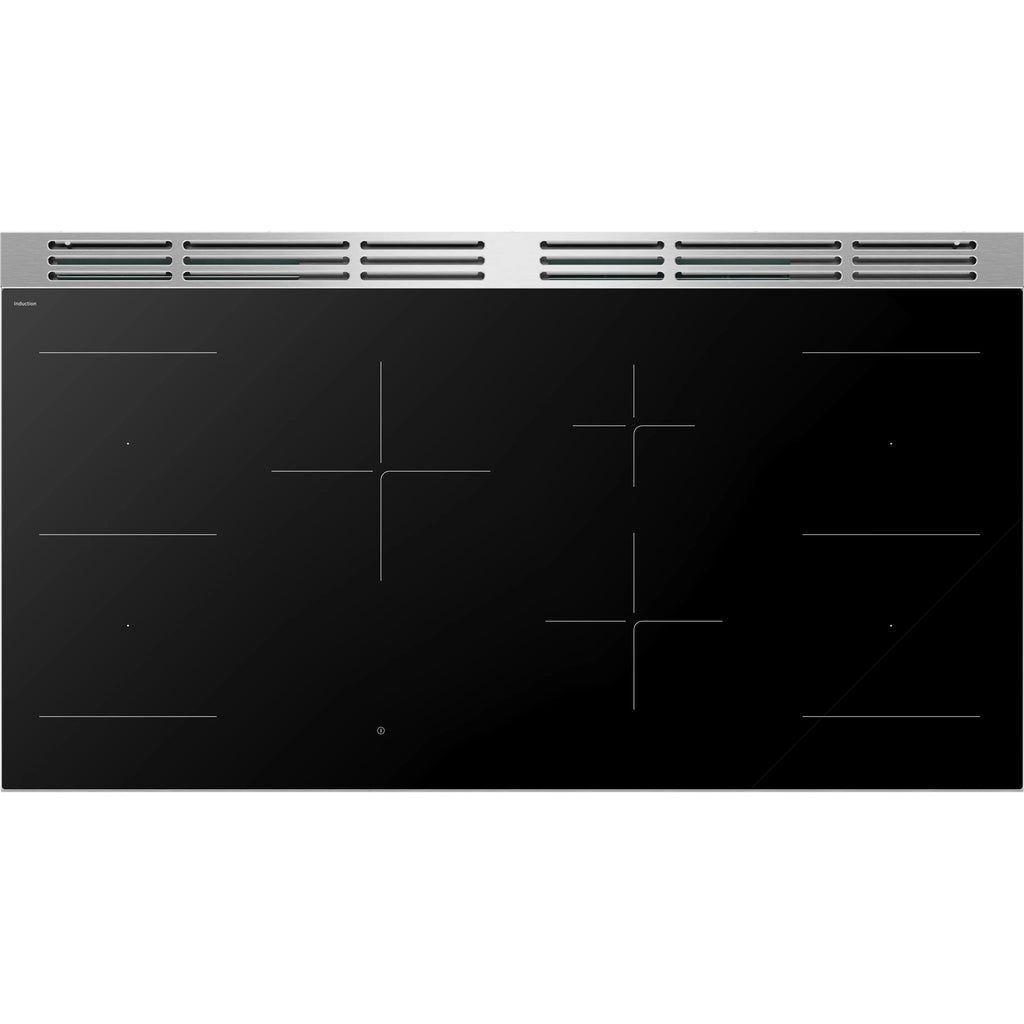

EASY TO CLEAN GLASS SURFACE
The glass surface cleans easily with a simple wipe compared to gas cooktops, so keeping your cooktop sparkling clean is easy and convenient.
COMBI ZONE™
Combi Zone™ feature combines 2 cooking zones into 1 for more flexibility and larger pans.

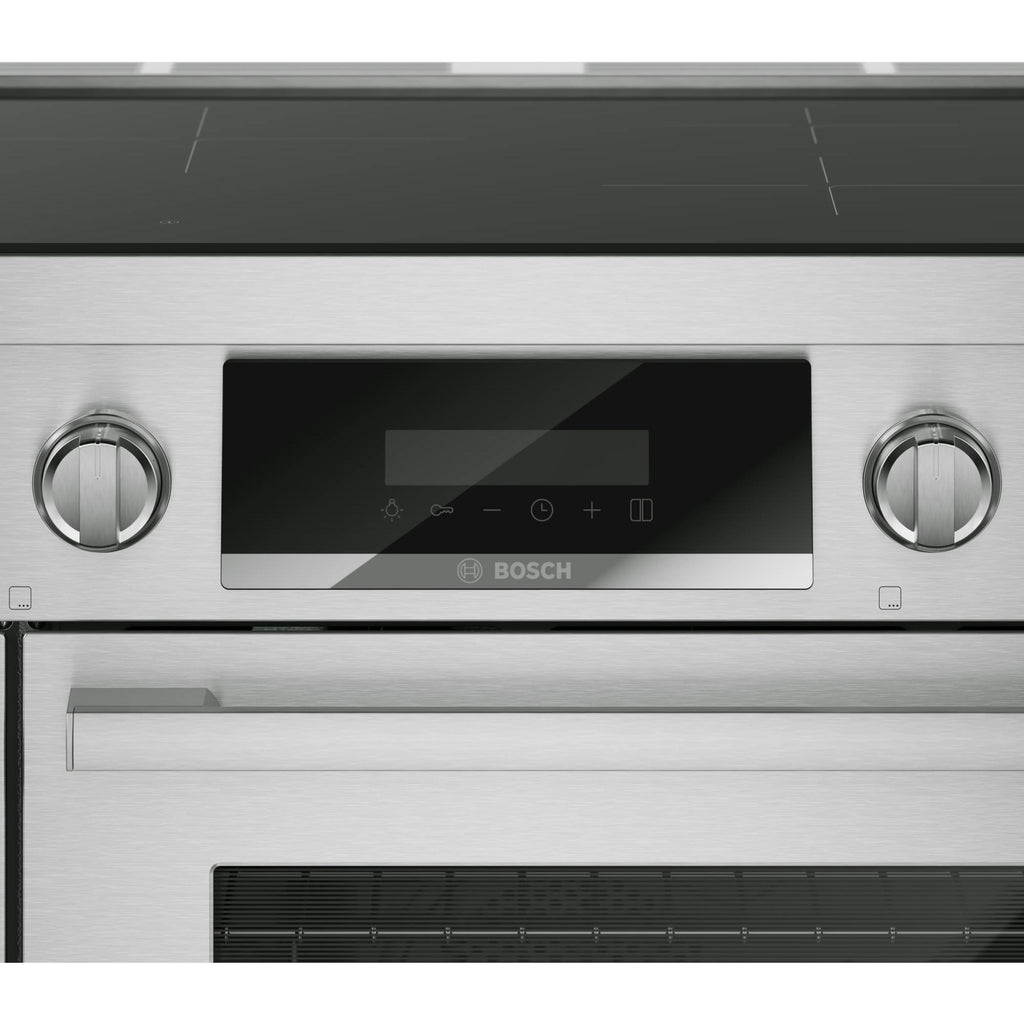

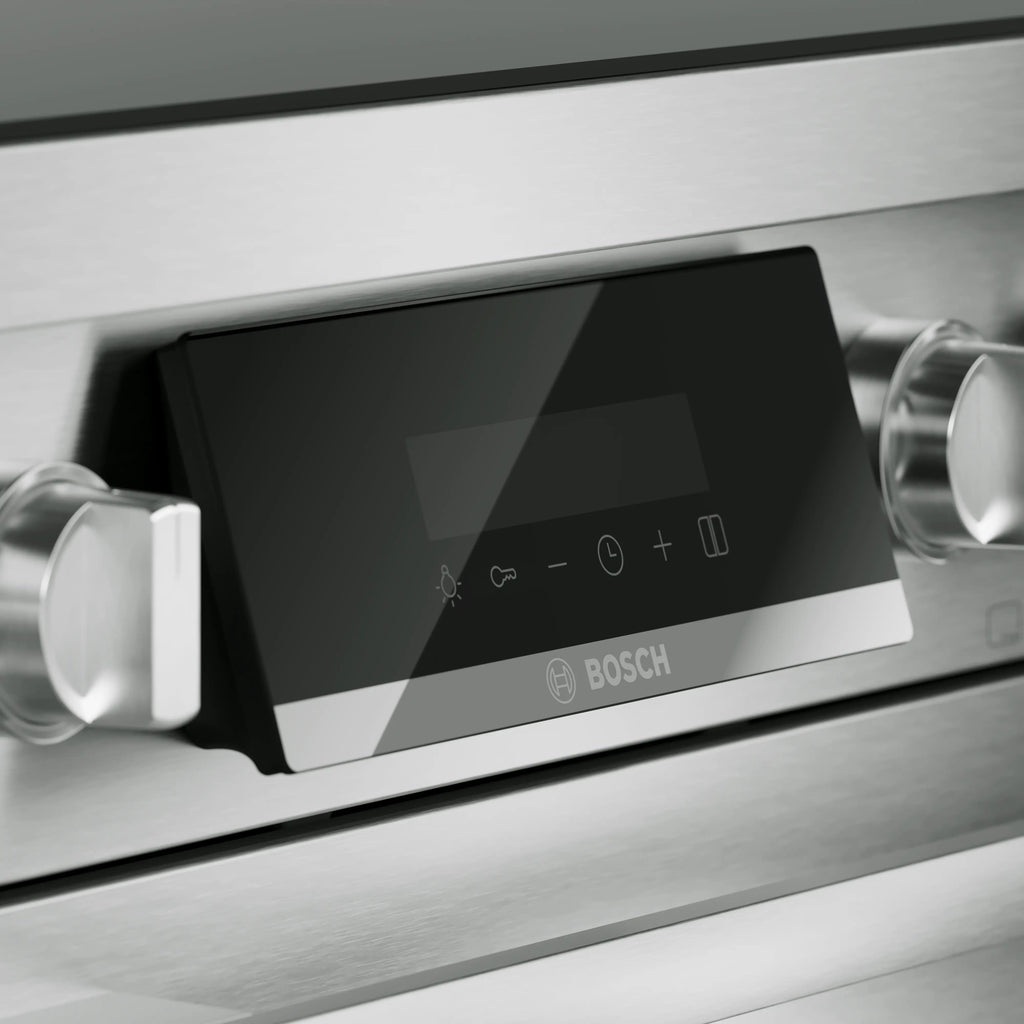

ERGONOMIC TILTED DISPLAY: MAKES VIEWING THE SCREEN MORE ERGONOMIC WHILE COOKING AND IS SLEEK AND STYLISH
The tilted display makes viewing the screen more ergonomic while cooking and is sleek and stylish.
SUPPORT HEAVY DISHES WITH A TELESCOPIC RACK
The Telescopic Rack moves smoothly and supports heavy dishes and casserole pans with ease, making it effortless to pull out the racks.
AIR FRY: USES CONVECTION FANS TO RAPIDLY CIRCULATE DRY, HOT AIR
Air Fry uses convection fans to rapidly circulate dry, hot air so you can achieve crispy, delicious results — without the use of added oils in traditional frying.
EVEN COOKING
A third heating element in the back and a fan circulates heat evenly so you get evenly golden results no matter where you place your pan.
BROIL MODE: USES INTENSE HEAT RADIATED FROM THE UPPER ELEMENT AND DELIVERS THE PERFECT CHAR, SEAR, AND GRILL WITHOUT THE MESS
Broil mode uses intense heat radiated from the upper element and delivers the perfect char, sear, and grill without the mess. It is perfect for meats and bubbling crusts on casseroles.
Specifications
General
Series Name
800 Series
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Catalytic Clean
• Steam Assist
• Steam Assist
Cooktop
Burners/Elements
7
Burners/Elements Output
• Back Left Element Power: 1,850 W (3,000 W with Boost)
• Front Left Element Power: 1,850 W (3,000 W with Boost)
• Front Right Element Power: 1,850 W (3,000 W with Boost)
• Back Right Element Power: 1,850 W (3,000 W with Boost)
• Center Element Power – Left (1 Generator): 1,850 / 2,600 W (3,000 / 5,500 W with Boost)
• Center Element Power – Front Right (Both Generators): 2,300 W (3,700 W with Boost)
• Center Element Power – Back Right (Both Generators): 1,400 W (2,200 W with Boost)
• Front Left Element Power: 1,850 W (3,000 W with Boost)
• Front Right Element Power: 1,850 W (3,000 W with Boost)
• Back Right Element Power: 1,850 W (3,000 W with Boost)
• Center Element Power – Left (1 Generator): 1,850 / 2,600 W (3,000 / 5,500 W with Boost)
• Center Element Power – Front Right (Both Generators): 2,300 W (3,700 W with Boost)
• Center Element Power – Back Right (Both Generators): 1,400 W (2,200 W with Boost)
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Total Capacity: 7.4 cu. ft.
• Large Oven: 5.4 cu. ft.
• Small Oven: 2.0 cu. ft.
• Large Oven: 5.4 cu. ft.
• Small Oven: 2.0 cu. ft.
Number of Ovens
Double
Programs
• Broil
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
Features
Technologies
• Convection Technology
• Air Fry Technology
• CombiZone™ — combines 2 cooking zones into 1 large zone for more flexibility and larger pans/griddles.
• Air Fry Technology
• CombiZone™ — combines 2 cooking zones into 1 large zone for more flexibility and larger pans/griddles.
Air Fry
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Type of Surface: Ceramic glass
• Knob Material: Plastic
• Interior Light: Main oven: 2 / Small oven: 2
• Kitchen Timer
• Bake / Broil Element Watts: Main oven: 1,700 / 1,700 W; Aux oven: 750 / 1,400 W
• Convection Element Watts: Main oven: 2 x 1,500 W; Aux oven: 1,550 W
• Knob Material: Plastic
• Interior Light: Main oven: 2 / Small oven: 2
• Kitchen Timer
• Bake / Broil Element Watts: Main oven: 1,700 / 1,700 W; Aux oven: 750 / 1,400 W
• Convection Element Watts: Main oven: 2 x 1,500 W; Aux oven: 1,550 W
Electrical Information
Information
• Watts: 16,100 / 21,400 W
• Circuit Breaker: 50 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Plug Type / Cord Length: NEMA 14-50 / 60" with plug
• Circuit Breaker: 50 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Plug Type / Cord Length: NEMA 14-50 / 60" with plug
Accessories
Included
• Temperature Probe
• 2 Telescopic Racks (Main)
• 1 Standard Rack (Aux)
• Anti-Tip Protection Kit
• 2 Telescopic Racks (Main)
• 1 Standard Rack (Aux)
• Anti-Tip Protection Kit
Optional
• HEZ90T48UC — 48" Range Toe Kick, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
Dimensions
Class Width
48"
Width
47.91 inch(es) / 121.7 cm
Height
35.04 inch(es) / 89.0 cm
Depth (Without Handles)
24.8 inch(es) / 63.0 cm
Depth (Including Handles)
26.89 inch(es) / 68.3 cm
Additional Dimensions
• Dimensions (H × W × D): 36" x 47 15/16" x 24 13/16" (w/ bull nose 26 5/16")
• Required Cutout Size (H × W × D): 36" x 48" x 25"
• Adjustable Range Height: 35 1/16" Min. – 37" Max.
• Overall Oven Interior Dimensions (H × W × D): Main oven: 15.04" x 28.46" x 17.72"; Aux oven: 17.80" x 10.75" x 16.54"
• Usable Oven Interior Dimensions (H × W × D): Main oven: 14.57" x 26.97" x 16.14"; Aux oven: 9.33" x 13.94" x 14.76"
• Required Cutout Size (H × W × D): 36" x 48" x 25"
• Adjustable Range Height: 35 1/16" Min. – 37" Max.
• Overall Oven Interior Dimensions (H × W × D): Main oven: 15.04" x 28.46" x 17.72"; Aux oven: 17.80" x 10.75" x 16.54"
• Usable Oven Interior Dimensions (H × W × D): Main oven: 14.57" x 26.97" x 16.14"; Aux oven: 9.33" x 13.94" x 14.76"
Warranty
Warranty
1-year (365-day) limited warranty against defects in materials and workmanship from the date of original delivery, plus a separate 30-day limited warranty against cosmetic defects (finish blemishes, scratches, dents). Repair or replacement at Bosch's option.
UPC
UPC#
4242005510665
