Description

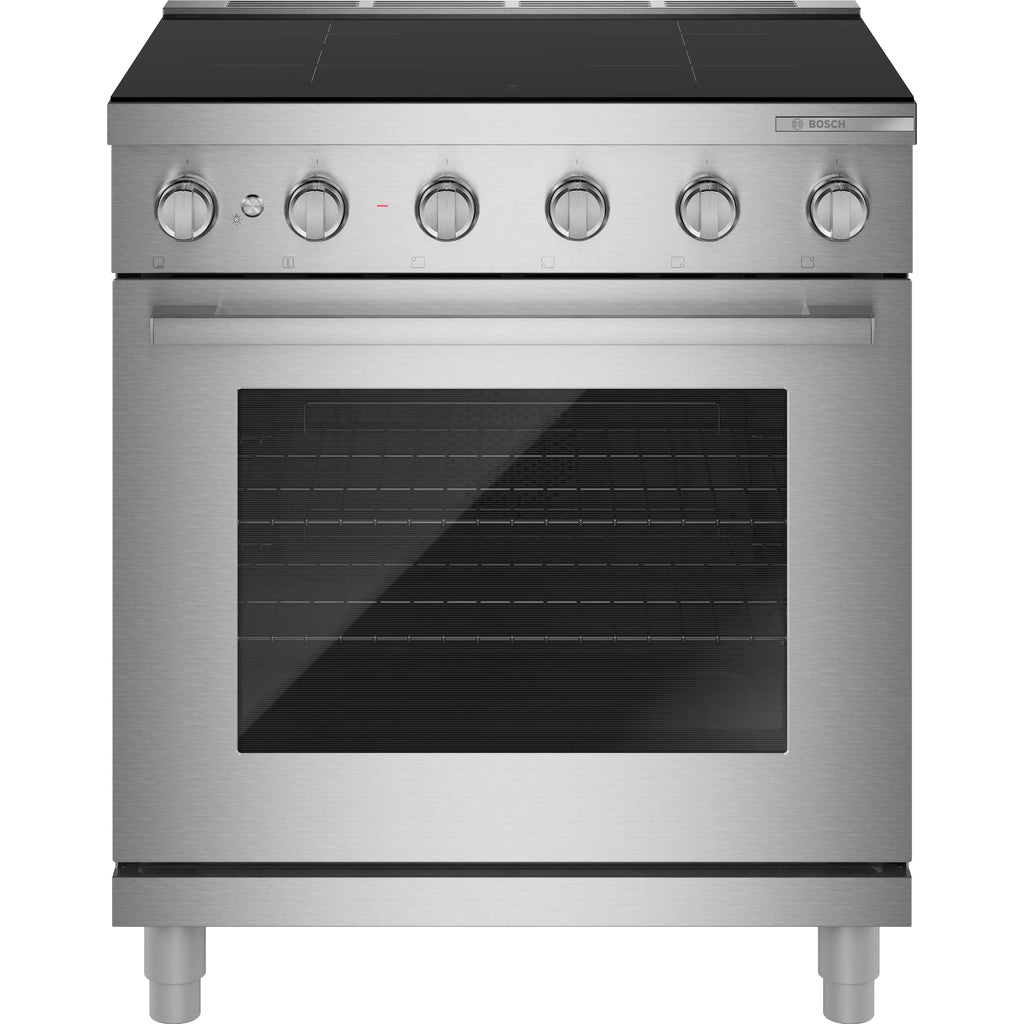

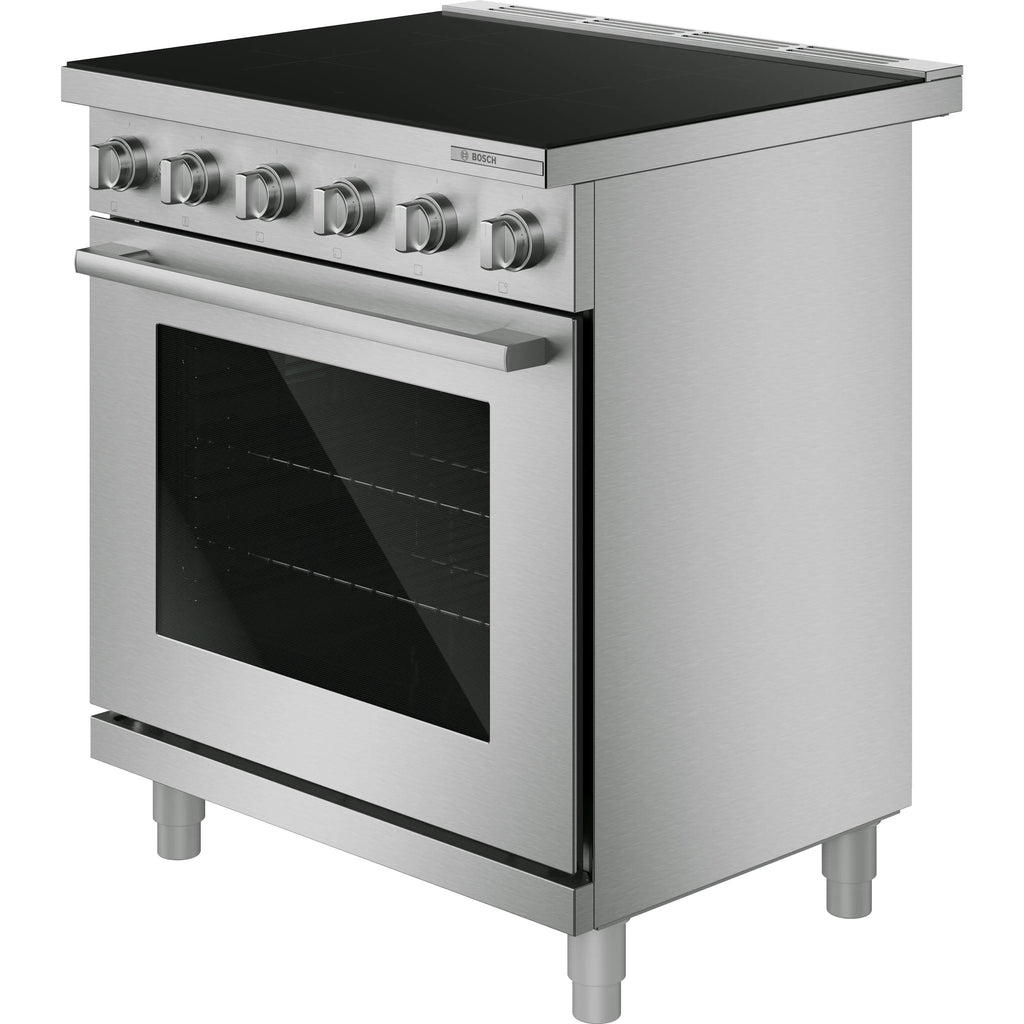

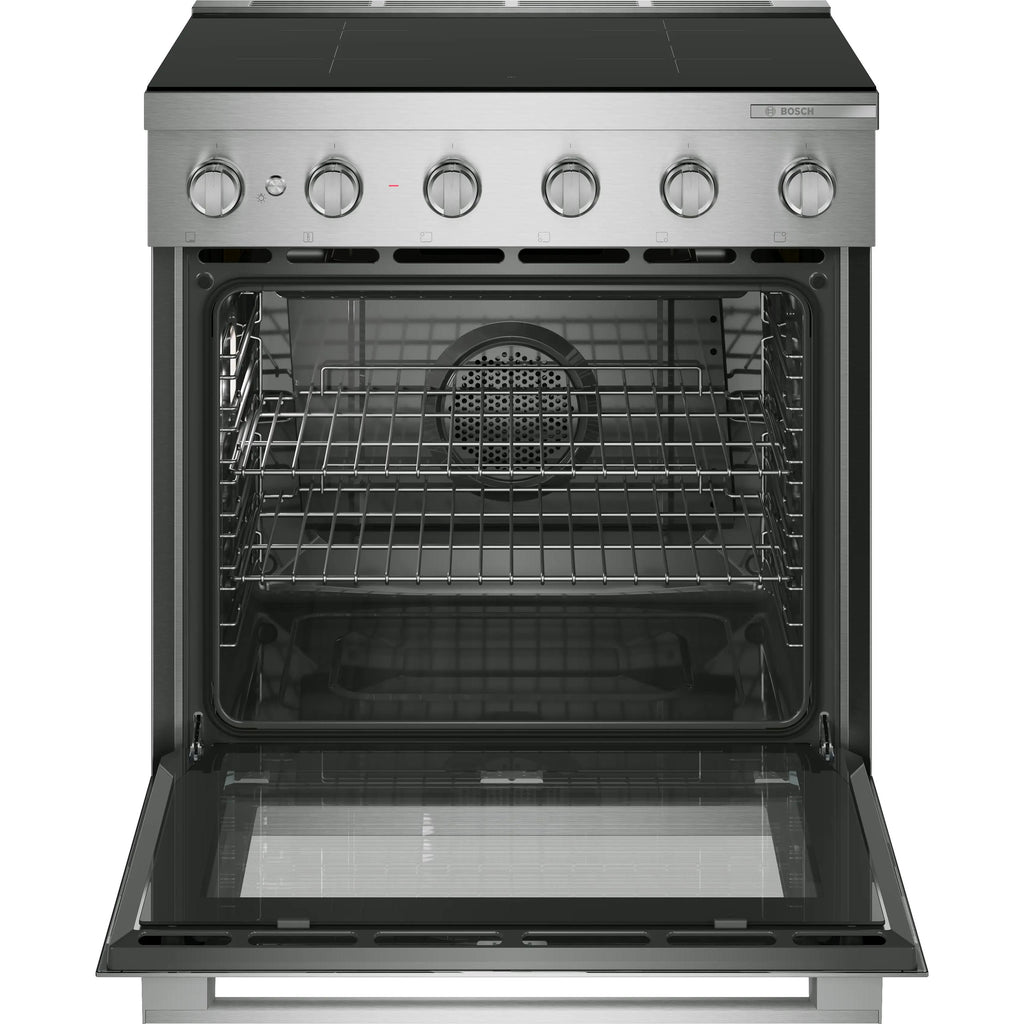

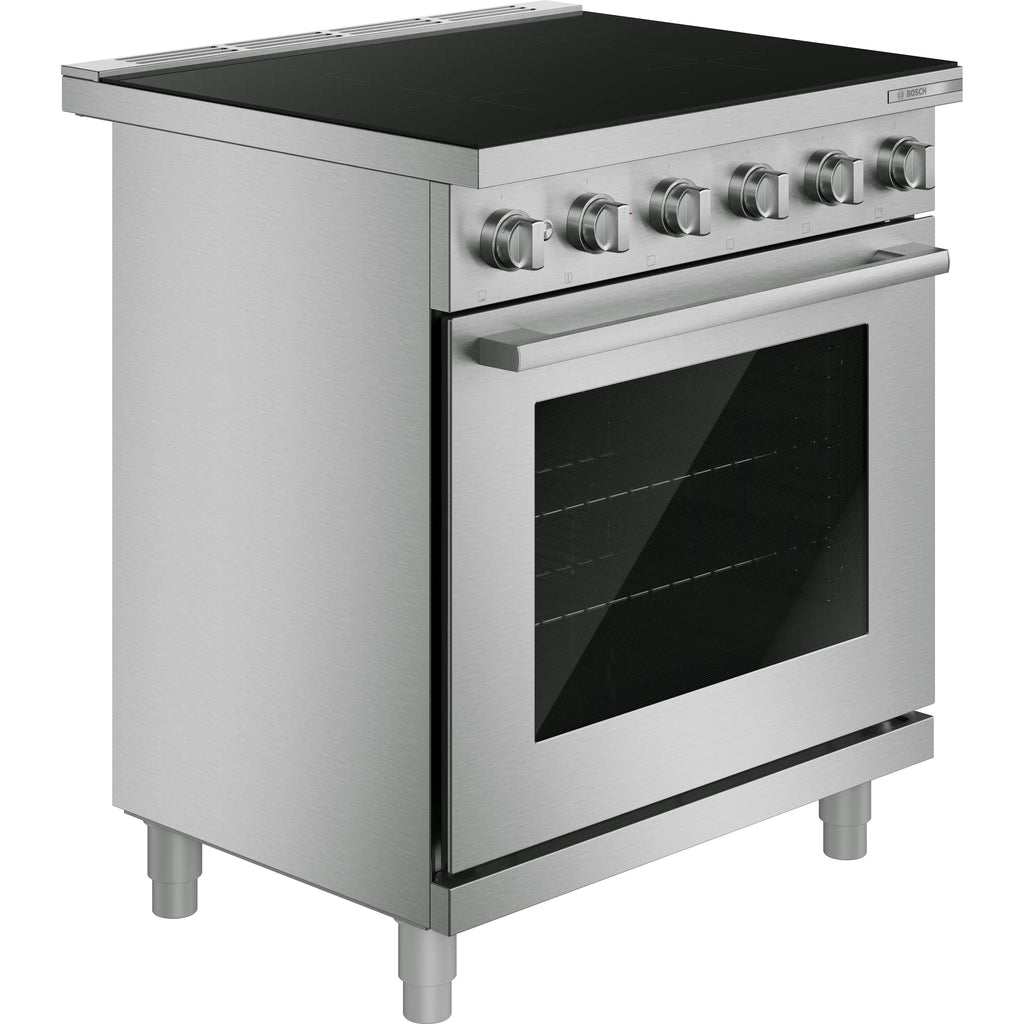

This Bosch 30-inch 500 Series induction range brings 4 induction elements to the cooktop, with two 2,300 W power elements up front for fast, efficient heating. The frameless, edge-to-edge glass cooktop heats cookware directly, cooking faster than gas or electric while staying cool to the touch and wiping clean with a simple wipe. The 4.7 cu. ft. oven offers 9 cooking modes, including Air Fry, Convection Multi-Rack, Pizza, and true Convection Bake with a third heating element and rear fan for even, golden results no matter where the pan sits. Broil mode uses intense heat from the upper element for a proper char and sear, and a steam-assisted cleaning cycle helps keep the oven cavity easier to maintain.
Features
INDUSTRIAL-CHIC DESIGN

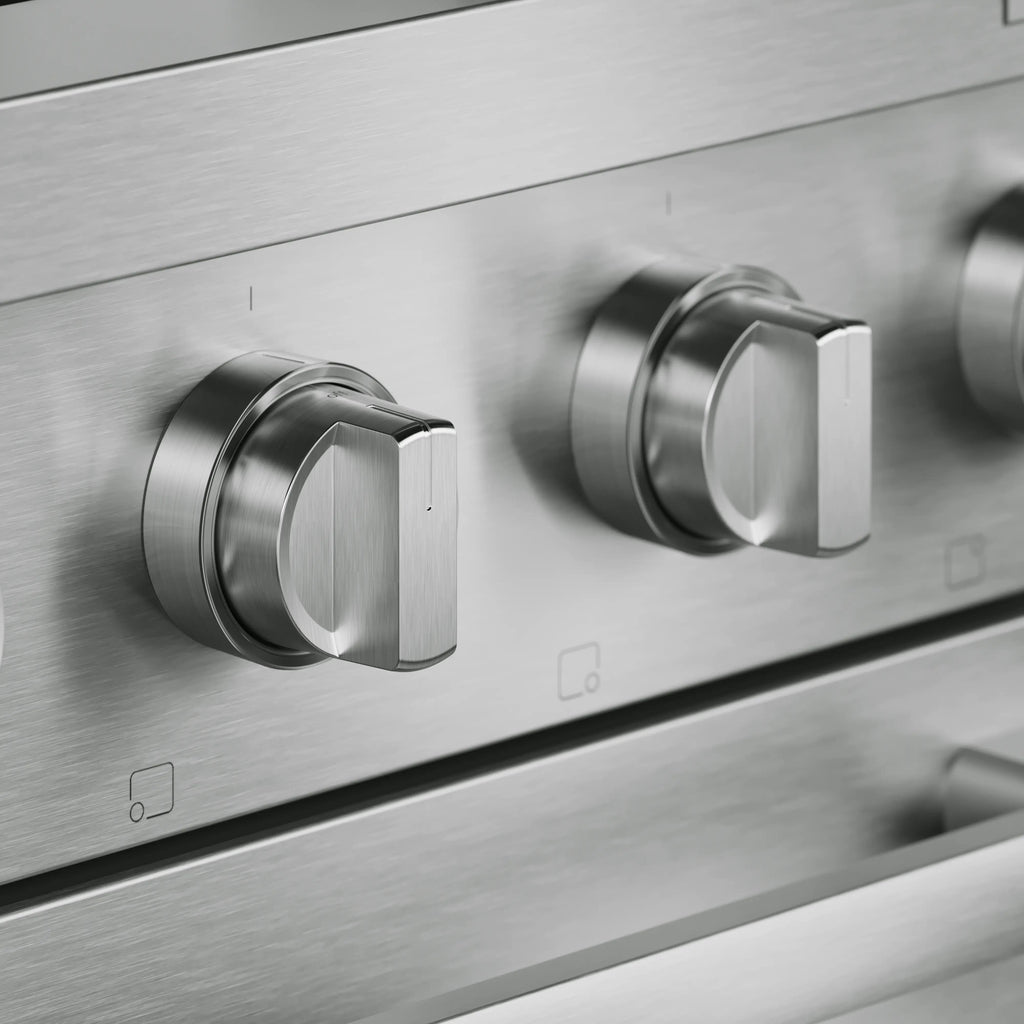

The bold freestanding design with pedestal feet and heavy duty knobs makes the industrial-style range a focal point in any kitchen.
FASTER COOKING WITH INDUCTION
When you place a pan on an induction cooktop and turn it on, an electric current travels through a coiled copper wire, which produces and applies heat directly to your pan. Heating the cookware directly prevents heat loss (plus, the area surrounding your pan remains cool to the touch). You'll also notice the ease of clean-up.

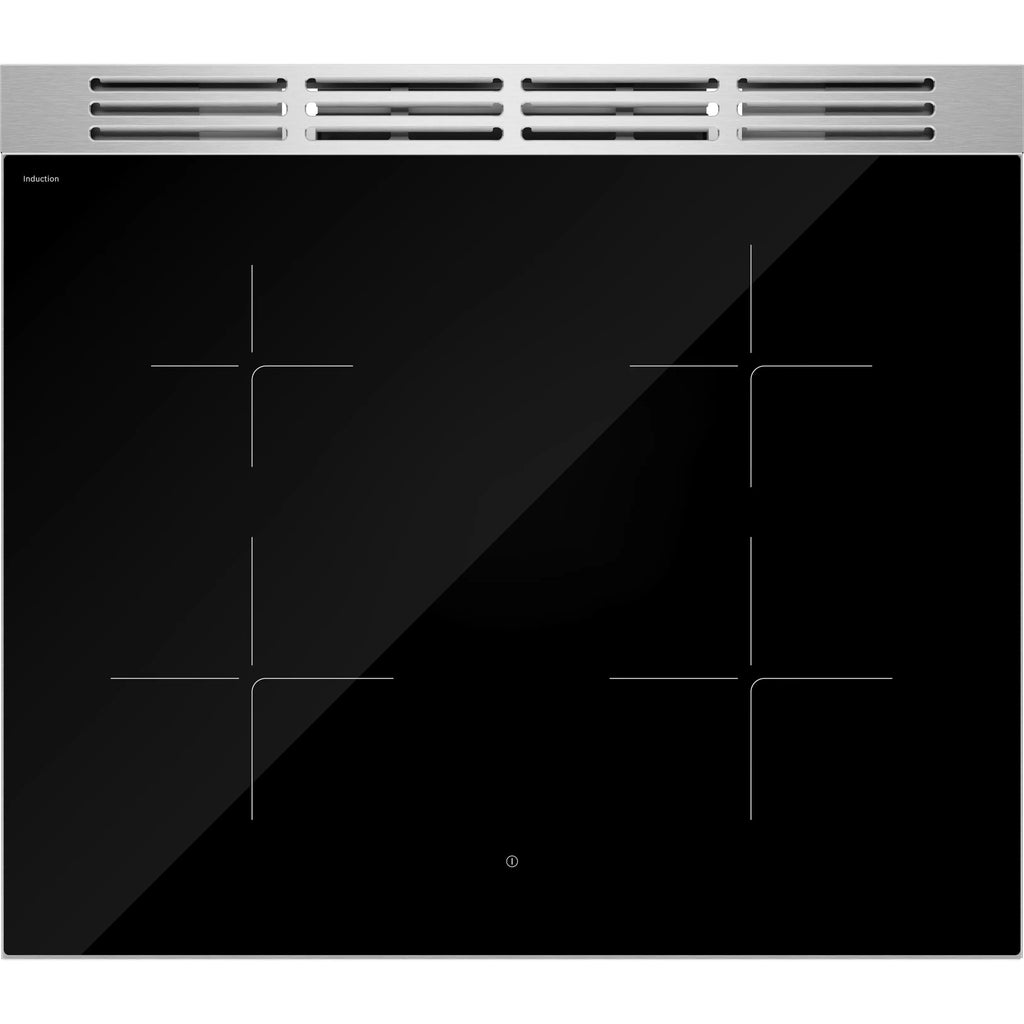

EASY TO CLEAN GLASS SURFACE
The glass surface cleans easily with a simple wipe compared to gas cooktops, so keeping your cooktop sparkling clean is easy and convenient.
AIR FRY: USES CONVECTION FANS TO RAPIDLY CIRCULATE DRY, HOT AIR
Air Fry uses convection fans to rapidly circulate dry, hot air so you can achieve crispy, delicious results — without the use of added oils in traditional frying.
EVEN COOKING
A third heating element in the back and a fan circulates heat evenly so you get evenly golden results no matter where you place your pan.
BROIL MODE: USES INTENSE HEAT RADIATED FROM THE UPPER ELEMENT AND DELIVERS THE PERFECT CHAR, SEAR, AND GRILL WITHOUT THE MESS
Broil mode uses intense heat radiated from the upper element and delivers the perfect char, sear, and grill without the mess. It is perfect for meats and bubbling crusts on casseroles.
Specifications
General
Series Name
500 Series
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam assist
Cooktop
Burners/Elements
4
Burners/Elements Output
• Back Left Element Power: 1,400 W (1,850 W with Boost)
• Front Left Element Power: 2,300 W (3,000 W with Boost)
• Front Right Element Power: 2,300 W (3,000 W with Boost)
• Back Right Element Power: 1,400 W (2,100 W with Boost)
• Front Left Element Power: 2,300 W (3,000 W with Boost)
• Front Right Element Power: 2,300 W (3,000 W with Boost)
• Back Right Element Power: 1,400 W (2,100 W with Boost)
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.7 cu. ft.
Number of Ovens
Single
Programs
• Broil
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
Features
Technologies
• Convection Technology
• Air Fry Technology
• Air Fry Technology
Air Fry
Yes
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Type of Surface: Ceramic glass
• Interior Light: 1
• Bake / Broil Element Watts: 1,700 / 1,700 W
• Convection Element Watts: 2,700 W
• Interior Light: 1
• Bake / Broil Element Watts: 1,700 / 1,700 W
• Convection Element Watts: 2,700 W
Electrical Information
Information
• Watts: 8,000 W
• Circuit Breaker: 40 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Power Cord Length: 1.5 meter
• Plug Type: 208/240 V – 4 prong
• Circuit Breaker: 40 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Power Cord Length: 1.5 meter
• Plug Type: 208/240 V – 4 prong
Accessories
Included
• 2 Standard Racks
• Anti-Tip Protection Kit
• Anti-Tip Protection Kit
Optional
• HEZ9TK30UC — 30" Range Toe Kick, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Stee
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Stee
Dimensions
Class Width
30"
Width
29.92 inch(es) / 76.0 cm
Height
35.55 inch(es) / 90.3 cm
Depth (Without Handles)
24.68 inch(es) / 62.7 cm
Depth (Including Handles)
26.85 inch(es) / 68.2 cm
Additional Dimensions
• Overall Appliance Dimensions (H × W × D): 36" x 29 15/16" x 24 11/16" (w/ bull nose 26 19/64")
• Required Cutout Size (H × W × D): 36" x 30" x 25"
• Adjustable Range Height: 35 9/16" Min. – 36 13/16" Max.
• Overall Oven Interior Dimensions (H × W × D): 17.40" x 24.33" x 18.42"
• Usable Oven Interior Dimensions (H × W × D): 17.32" x 22.83" x 17.13"
• Required Cutout Size (H × W × D): 36" x 30" x 25"
• Adjustable Range Height: 35 9/16" Min. – 36 13/16" Max.
• Overall Oven Interior Dimensions (H × W × D): 17.40" x 24.33" x 18.42"
• Usable Oven Interior Dimensions (H × W × D): 17.32" x 22.83" x 17.13"
Warranty
Warranty
1-year (365-day) limited warranty against defects in materials and workmanship from the date of original delivery, plus a separate 30-day limited warranty against cosmetic defects (finish blemishes, scratches, dents). Repair or replacement at Bosch's option.
UPC
UPC#
825225975403
