Features
OPTISIM® BURNER

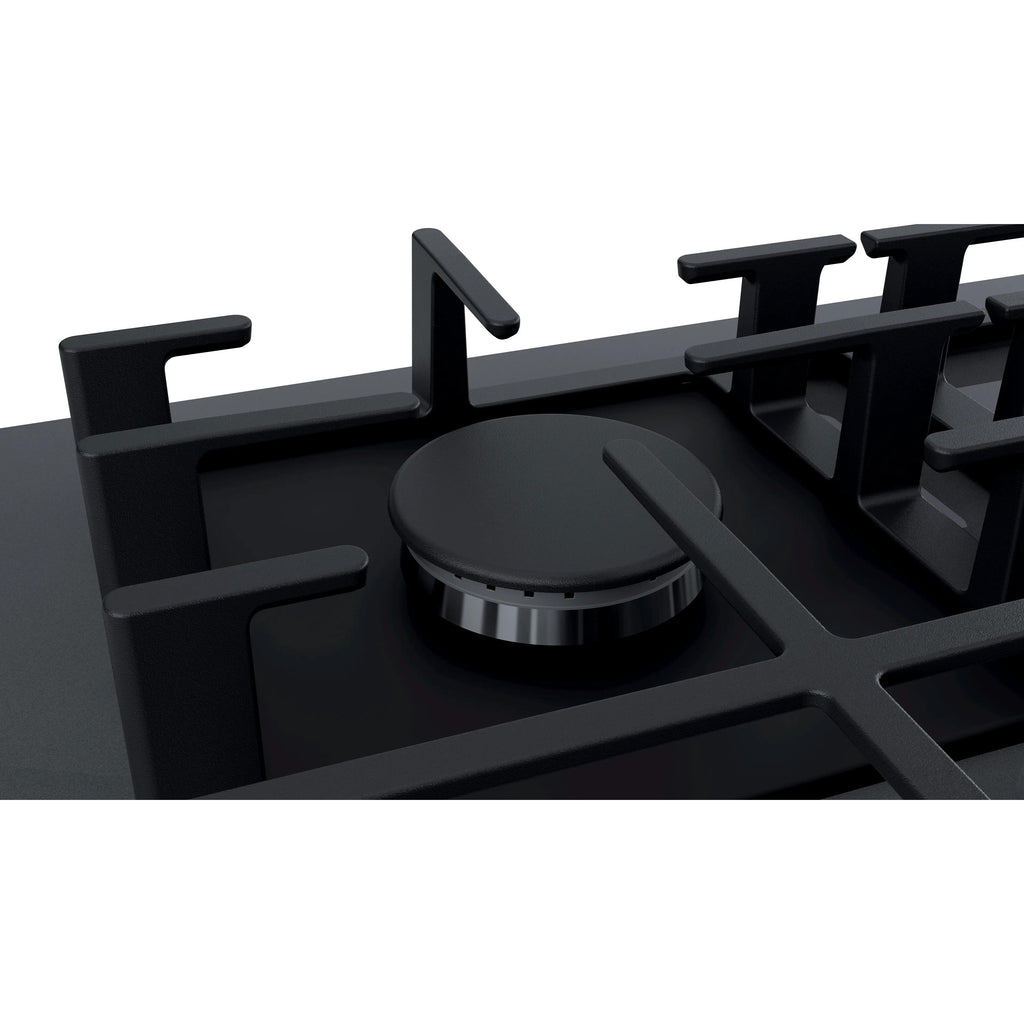

OptiSim® Burner – simmer delicate sauces and melt chocolate without scorching
Specifications
General
Series Name
Benchmark®
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas

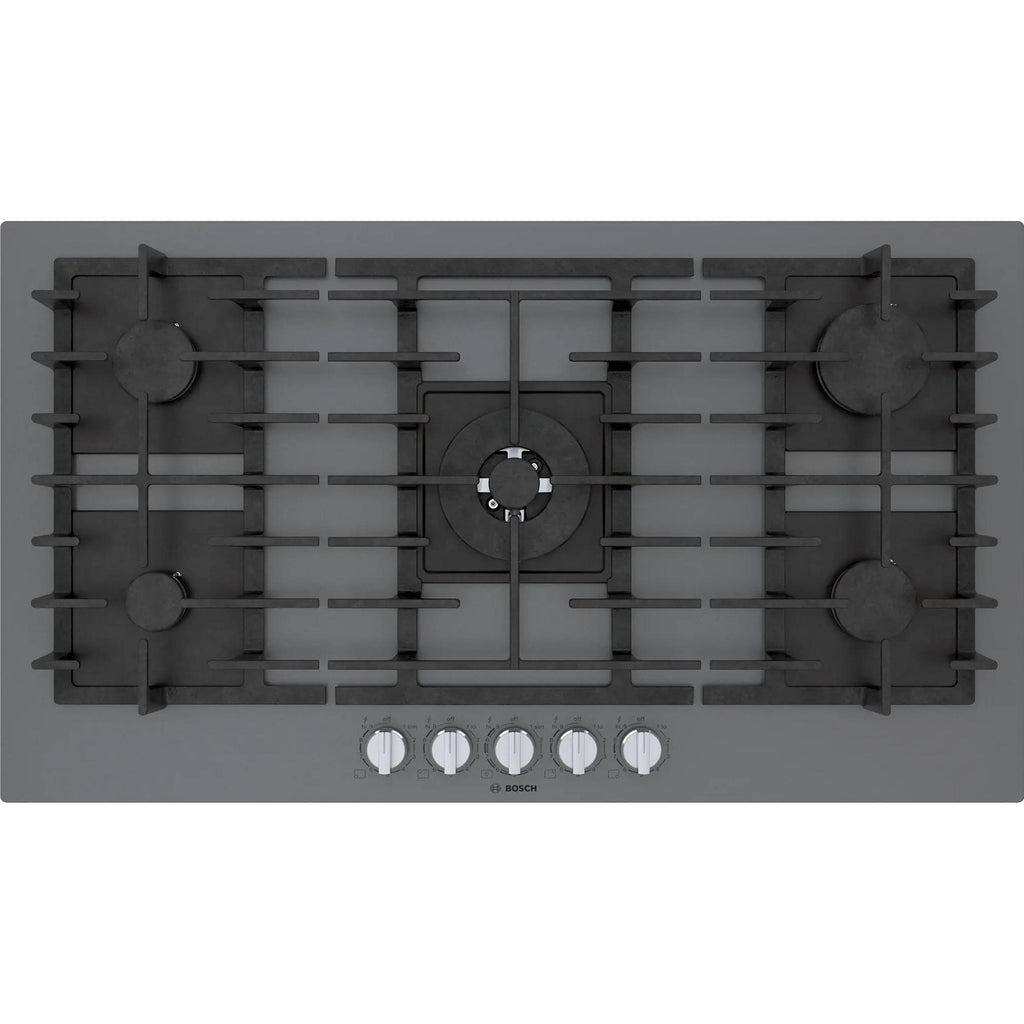

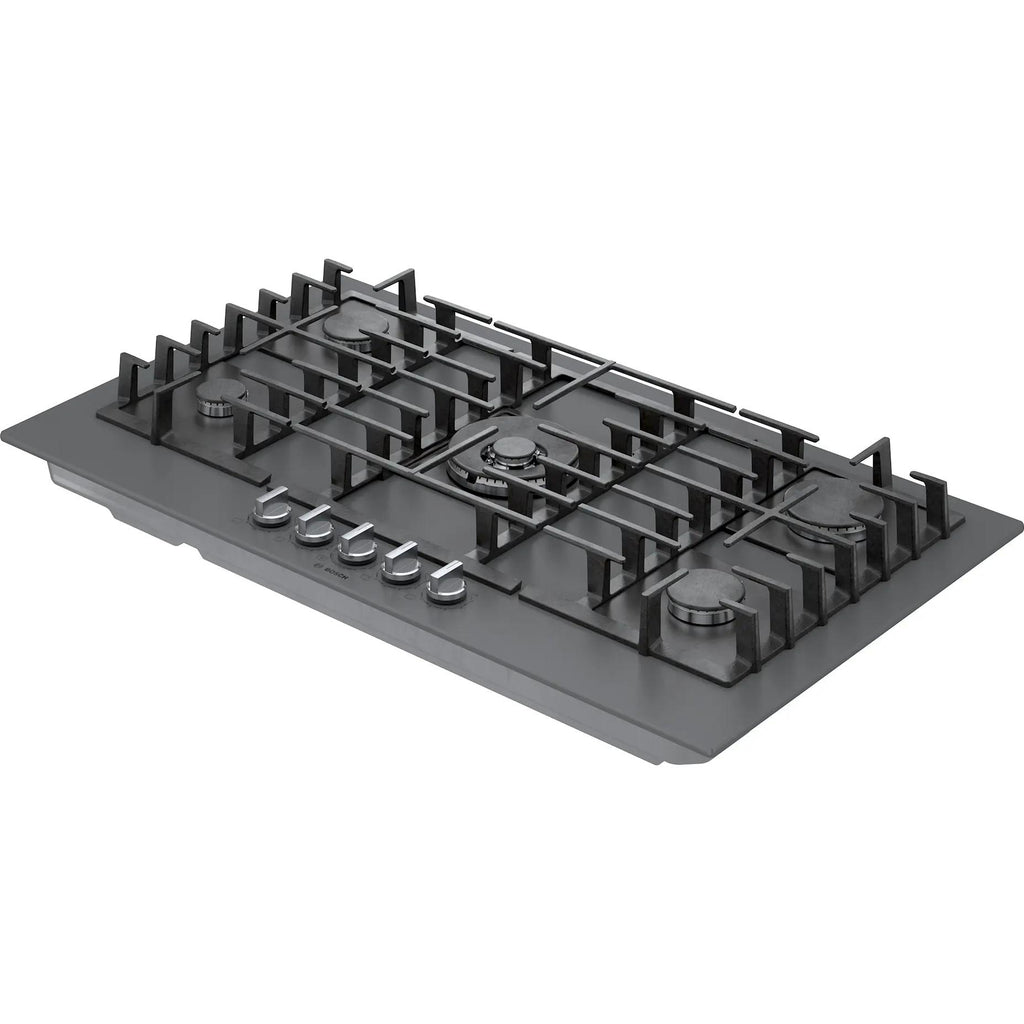

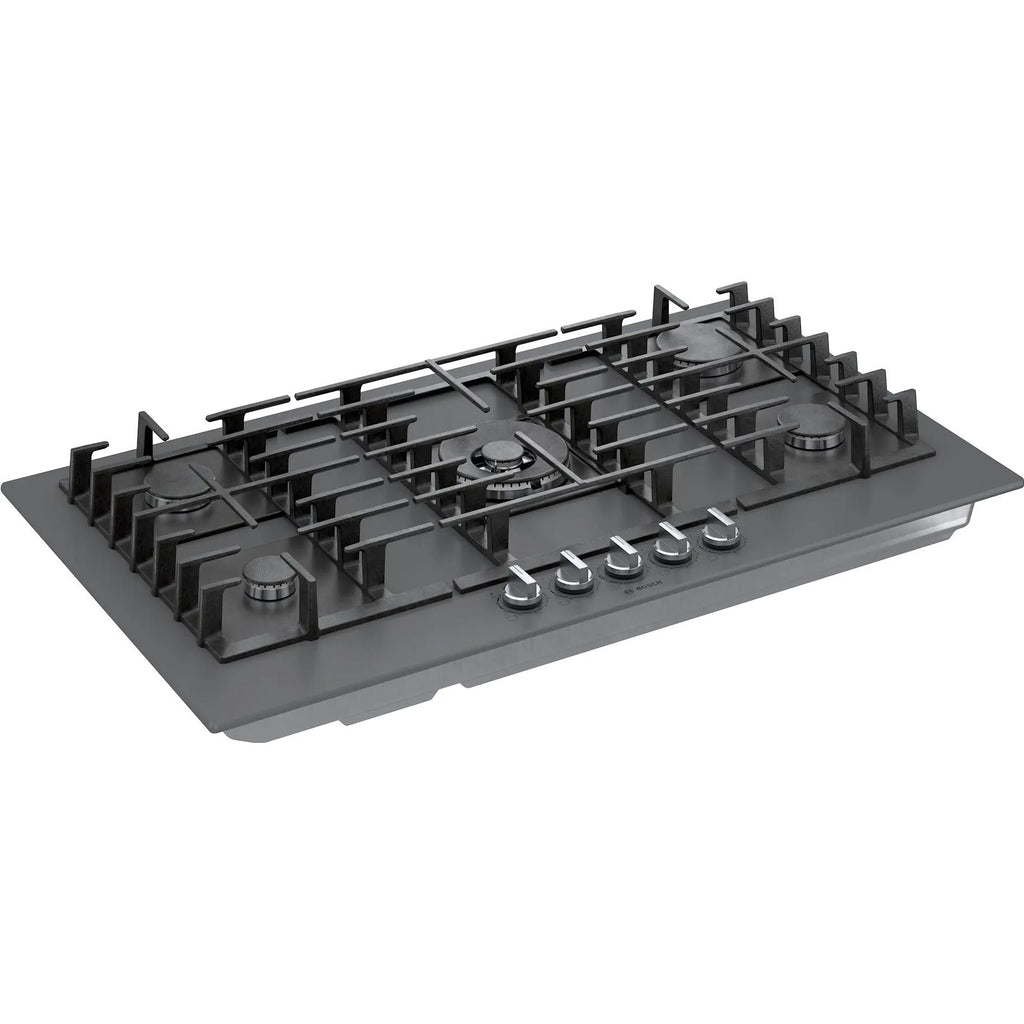

Type
Built-In
Cooktop

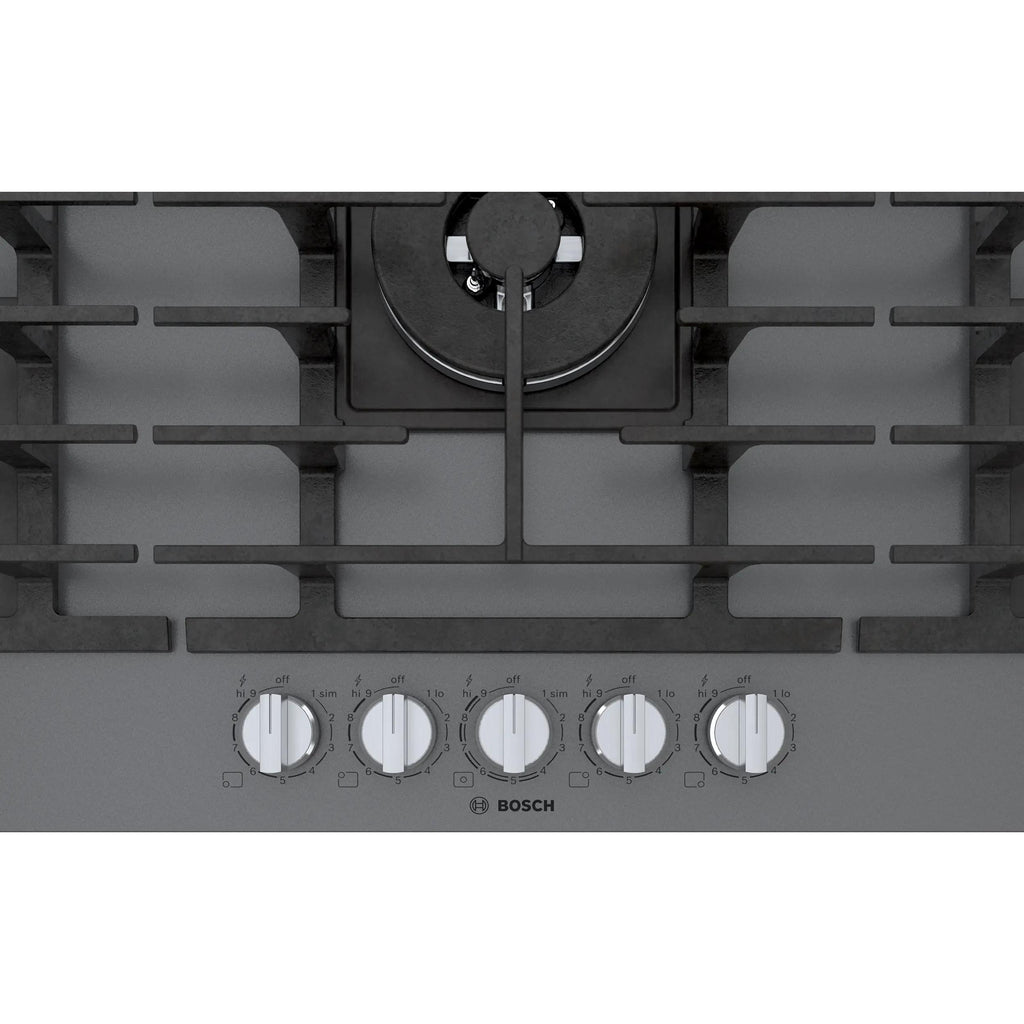

Burners/Elements
5
Power Output
• Total BTU (NG / LP): 40,000 / 40,000
• Front Left (NG / LP): 3,400 / 3,400
• Back Left (NG / LP): 6,000 / 6,000
• Center (NG / LP): 14,300 / 14,300
• Back Right (NG / LP): 10,300 / 10,300
• Front Right (NG / LP): 6,000 / 6,000
• Front Left (NG / LP): 3,400 / 3,400
• Back Left (NG / LP): 6,000 / 6,000
• Center (NG / LP): 14,300 / 14,300
• Back Right (NG / LP): 10,300 / 10,300
• Front Right (NG / LP): 6,000 / 6,000

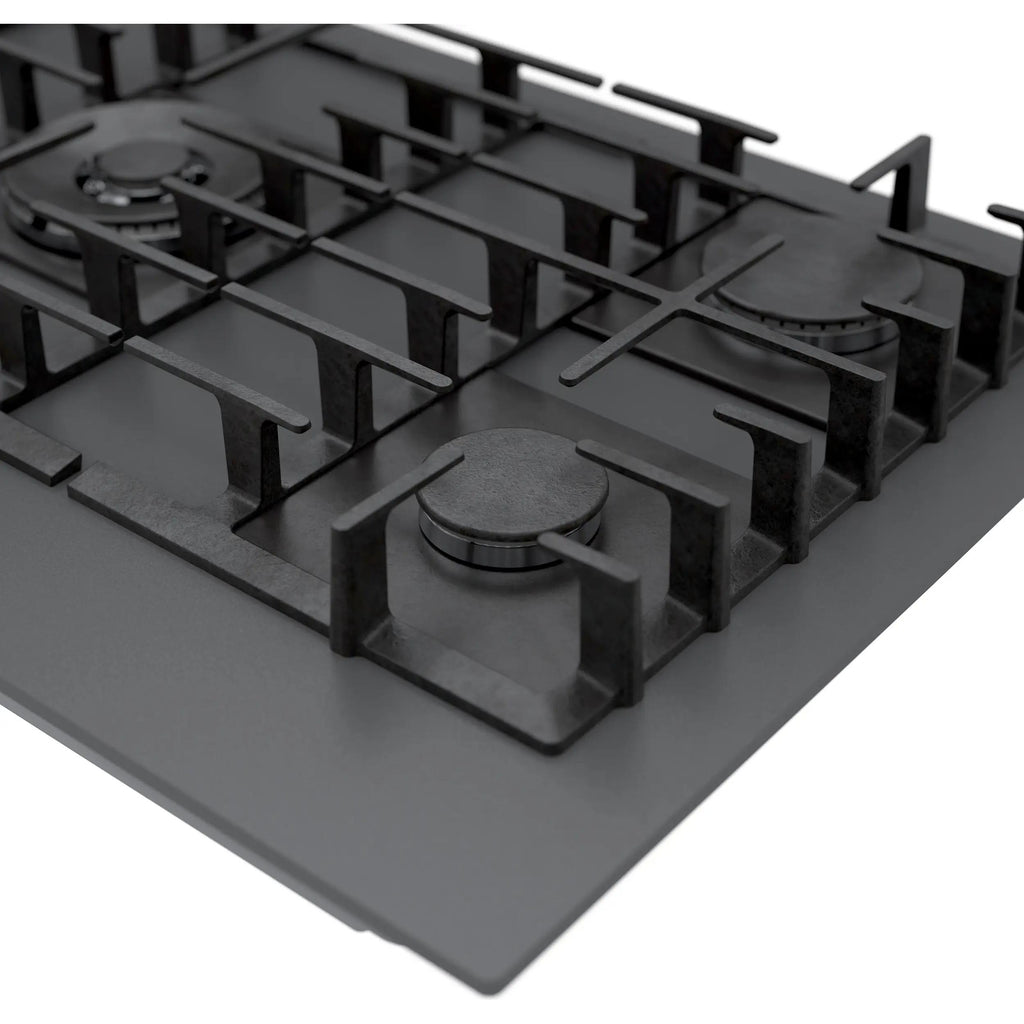

Burners
Sealed
Surface Features

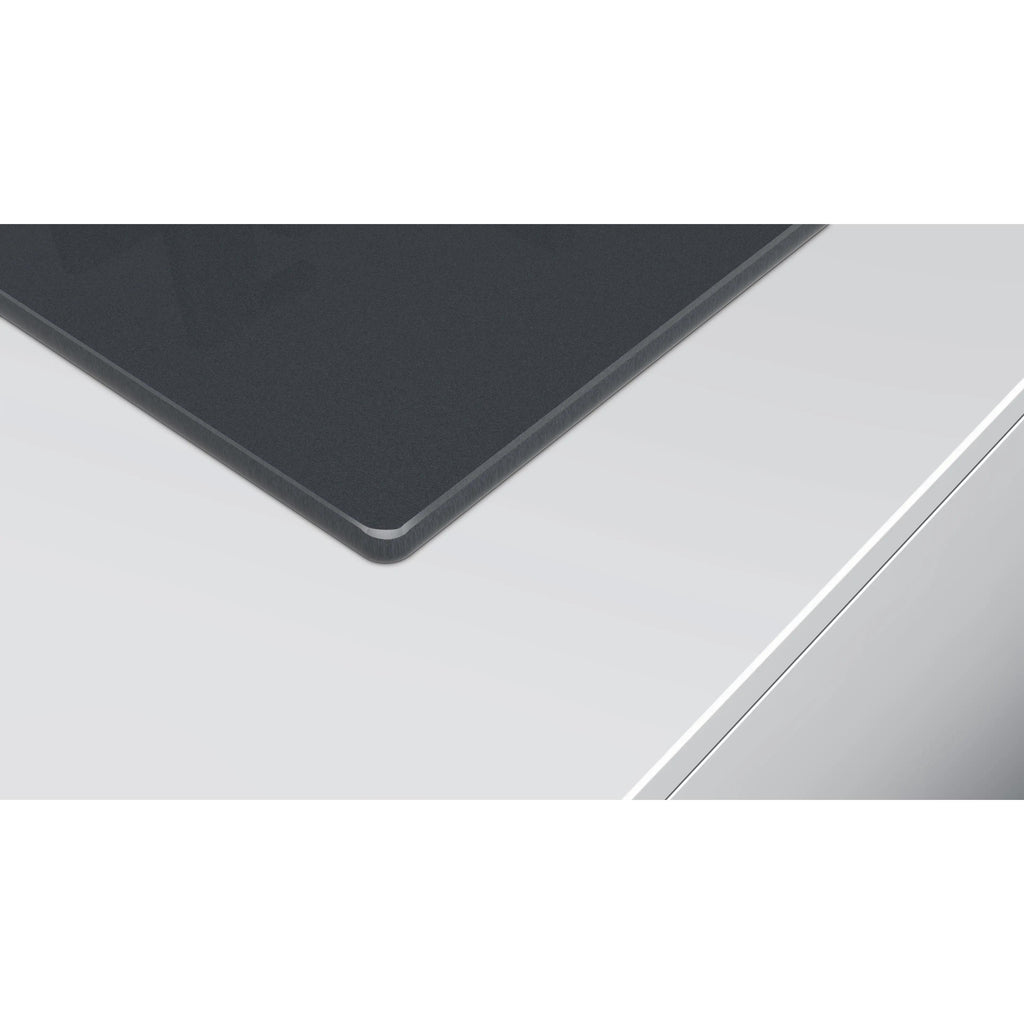

Gray Tempered Glass With Porcelain Steel Heat Shields
Features
Technologies
• OptiSim® Burner
• FlameSelect®
• FlameSelect®
Additional Information
• Heavy-Duty Grates Can Be Easily And Quickly Cleaned In The Dishwasher

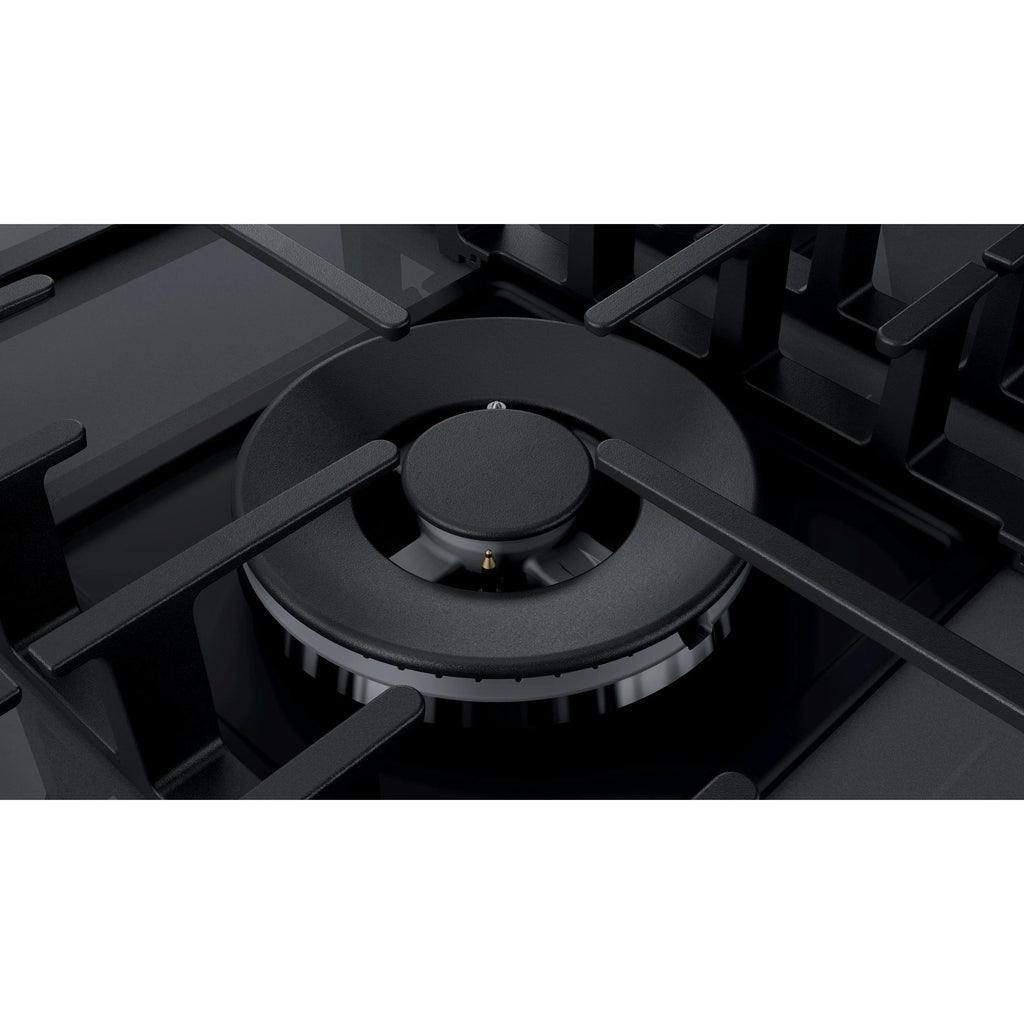

• Dual-Flame Power Burner With Two Heat Options

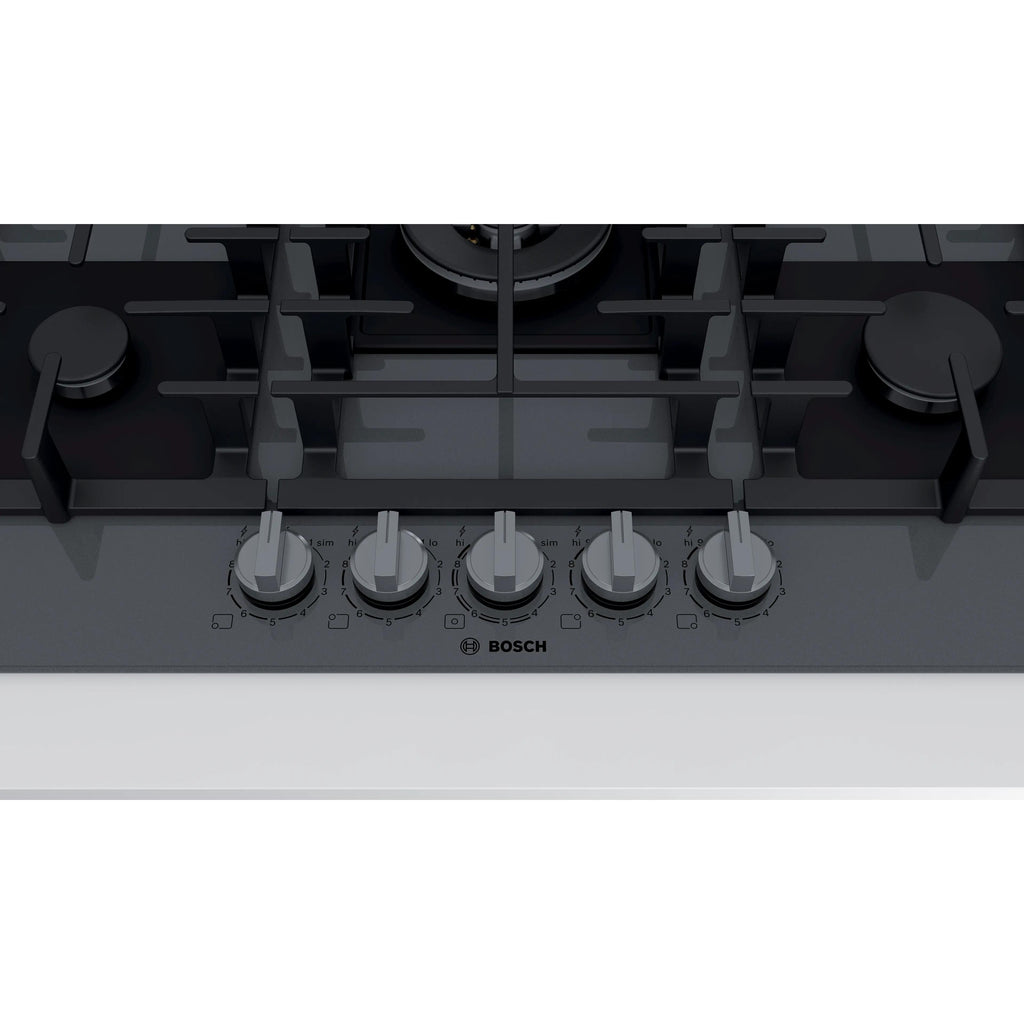

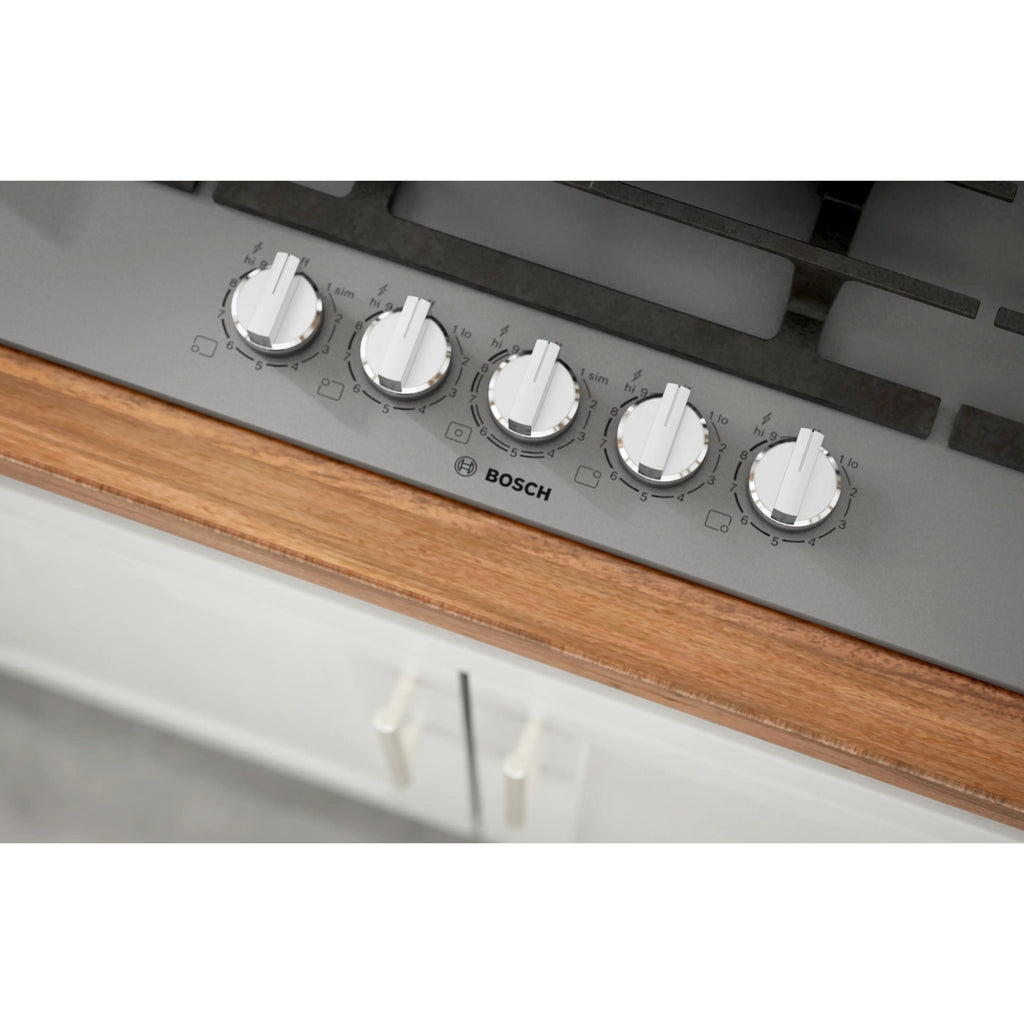

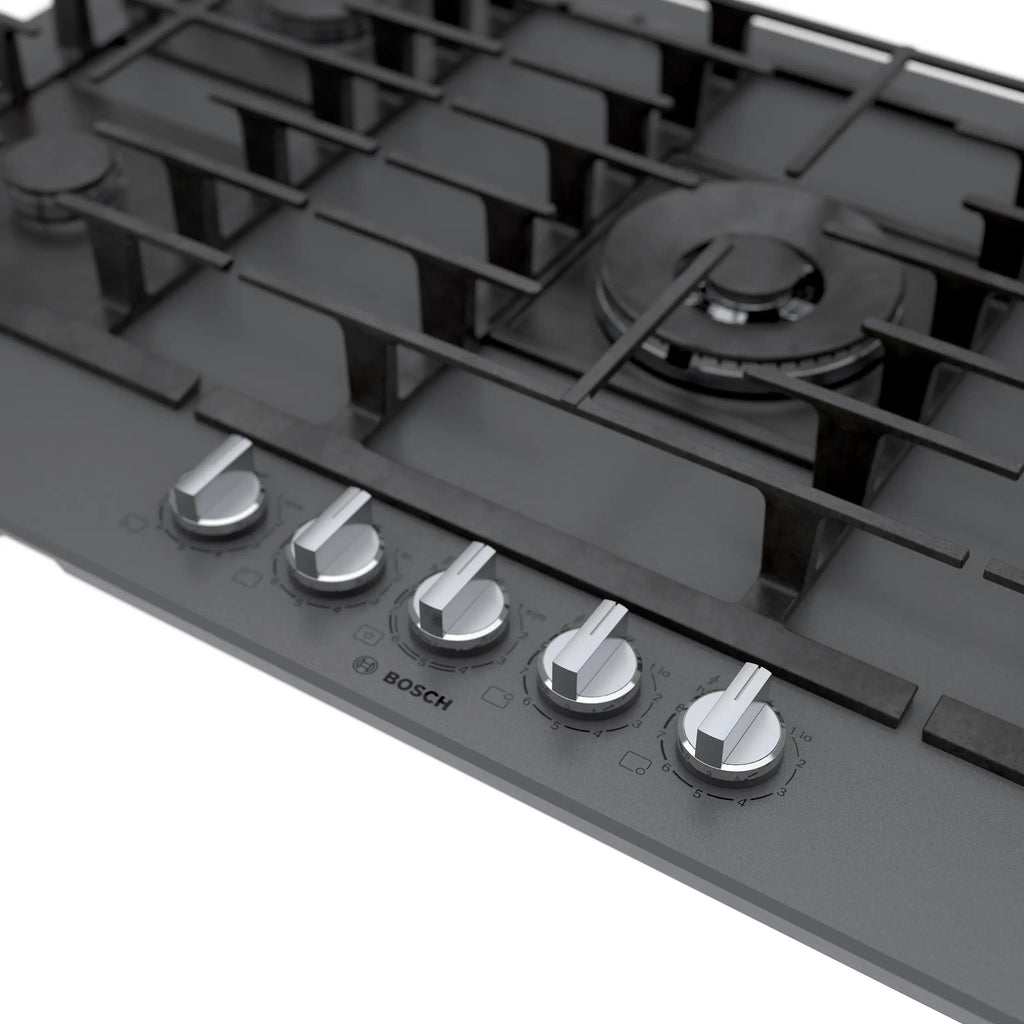

• Five 9-Level Step Valves
• Thermocouple Safety Control Ignition System
• Dual-Flame Power Burner With Two Heat Options
• Five 9-Level Step Valves
• Thermocouple Safety Control Ignition System
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• LP Conversion Kit
• OptiSim® Cap
• OptiSim® Cap
Optional
Wok Ring: HEZ298107
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
20.5 inch(es) / 52.07 cm
Depth
2.56 inch(es) / 6.5 cm
Weight
53 lb(s) / 24.04 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 1 1/4" x 33 1/2" x 19 5/16"
• Minimum Distance From Counter Front: 1 7/8"
• Minimum Distance From Rear Wall: 3"
• Minimum Distance From Counter Front: 1 7/8"
• Minimum Distance From Rear Wall: 3"
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225959236
