Features
WATER SOFTENER
The water softener removes hard water spots caused by lime deposits and softens water to the appropriate level for superior washing results.
EXTRA DRY
Activating the Extra Dry option dries your dishes extra-thoroughly by higher temperatures during the rinse cycle and a longer drying phase - with just one push of a button.
AQUASTOP®
24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.
RACKMATIC®

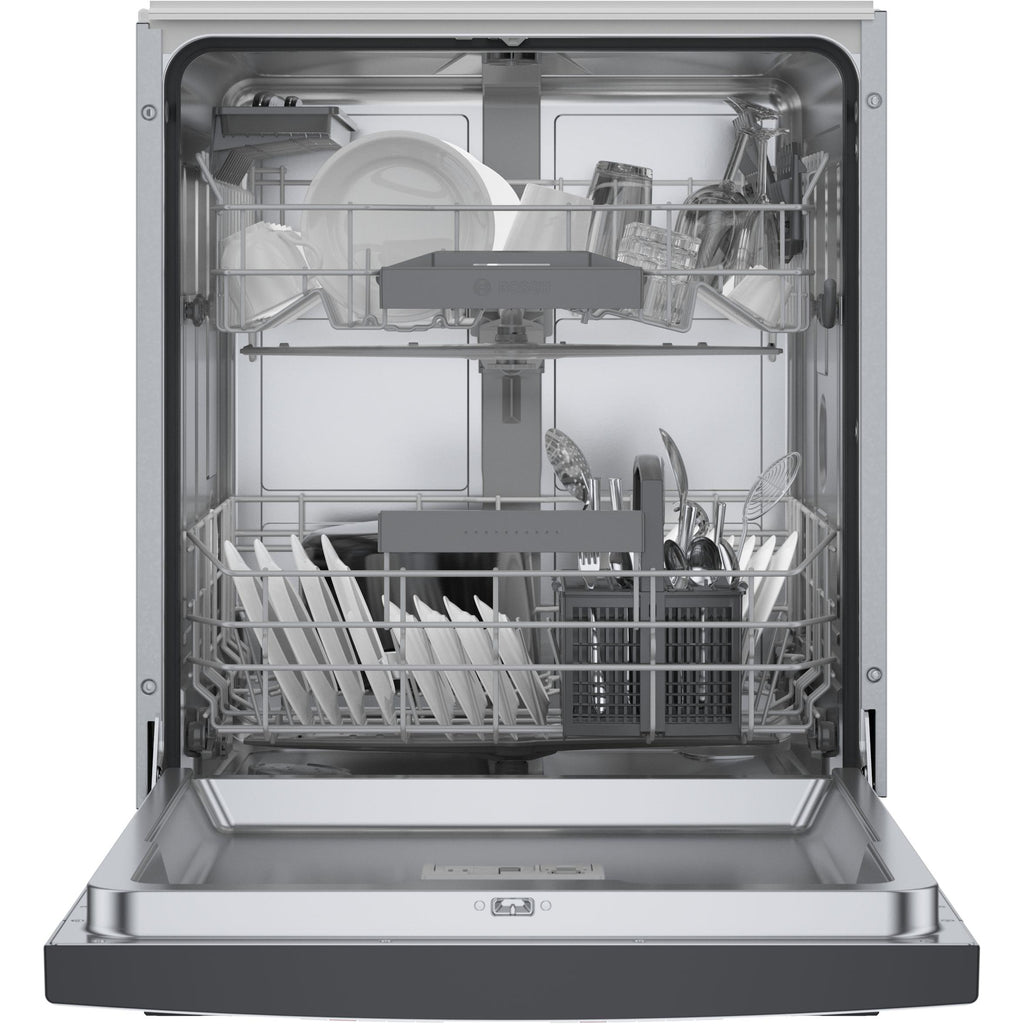

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
Additional Features
HOME CONNECT™.
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
Specifications
General
Series Name
300 Series
Type
Built-In
Color
Black
Manufacturer Color
Black
Place Settings
13
Tub Material
Stainless Steel
Silence Rating
46 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Intensive
• Auto
• Economy
• Pre-rinse
• Custom program
• Auto
• Economy
• Pre-rinse
• Custom program
Options
• Crystal Protect
• Extra dry
• HygienePlus
• Machine Care
• Remote Start
• Extra dry
• HygienePlus
• Machine Care
• Remote Start
Features
Technologies
• Home Connect™ (Wi-Fi enabled)
• 24/7 AquaStop® Plus
• 3-step RackMatic®
• PrecisionWash®
• 24/7 AquaStop® Plus
• 3-step RackMatic®
• PrecisionWash®
Delay Start Information
24 Hours
Delay Start
Yes
Control Lock
Yes
Wi-Fi
Yes
Additional Information
• Water Softener
• Five-Level Wash
• Total Annual Water Consumption of 494 gal
• Concealed Water Heating Element
• PureDry Drying System
• Five-Level Wash
• Total Annual Water Consumption of 494 gal
• Concealed Water Heating Element
• PureDry Drying System
Electrical Information
Information
• 1440 W
• 120 V
• 60 Hz
• 12 A
• 120 V
• 60 Hz
• 12 A
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
• Junction Box SMZPCJB1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.19 inch(es) / 58.9 cm
Height (Min.)
32.09 inch(es) / 81.5 cm
Depth (Without Handle)
22.56 inch(es) / 57.3 cm
Weight
81.99 lb(s) / 37.19 kg
Additional Dimensions
Required Cutout Size (HxWxD): 32 1/8" x 24" x 24"
UPC
UPC#
825225970378
