Features
24/7 AQUASTOP®
The 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.

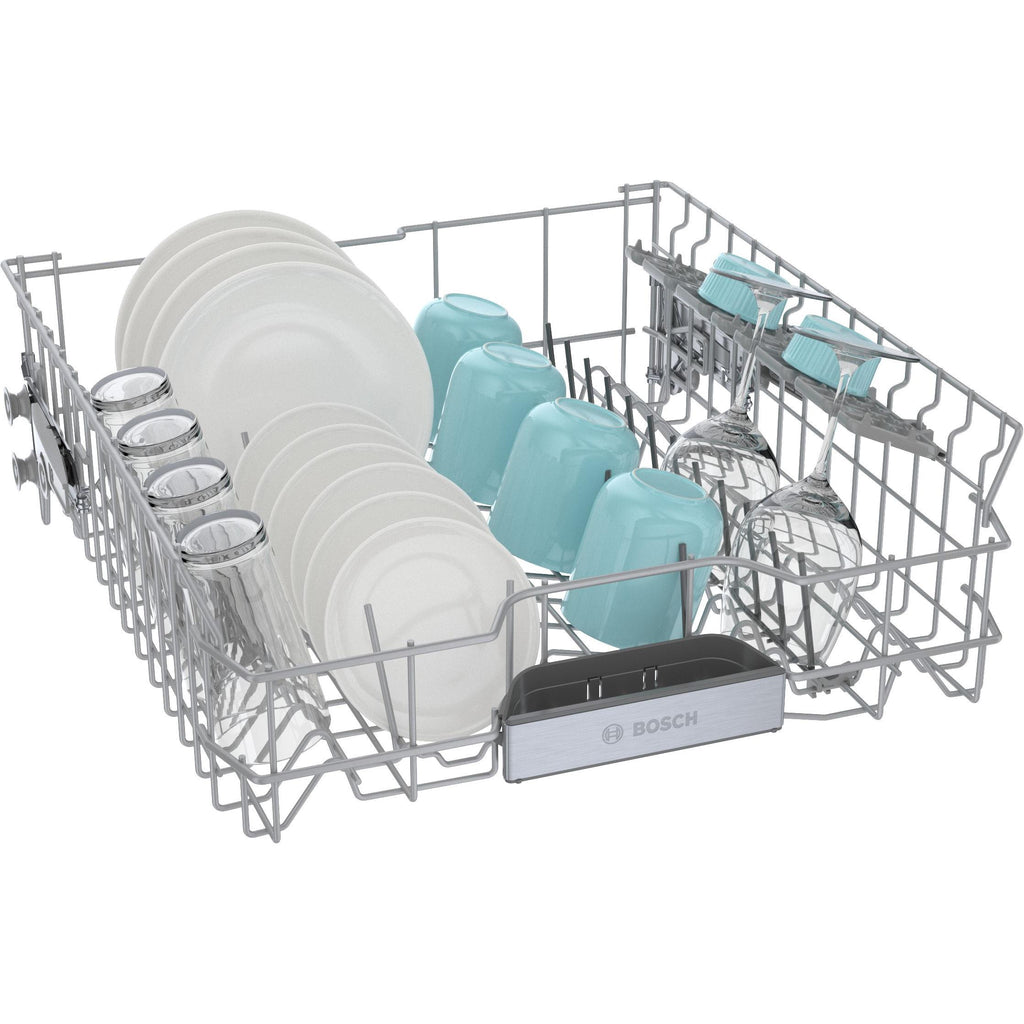

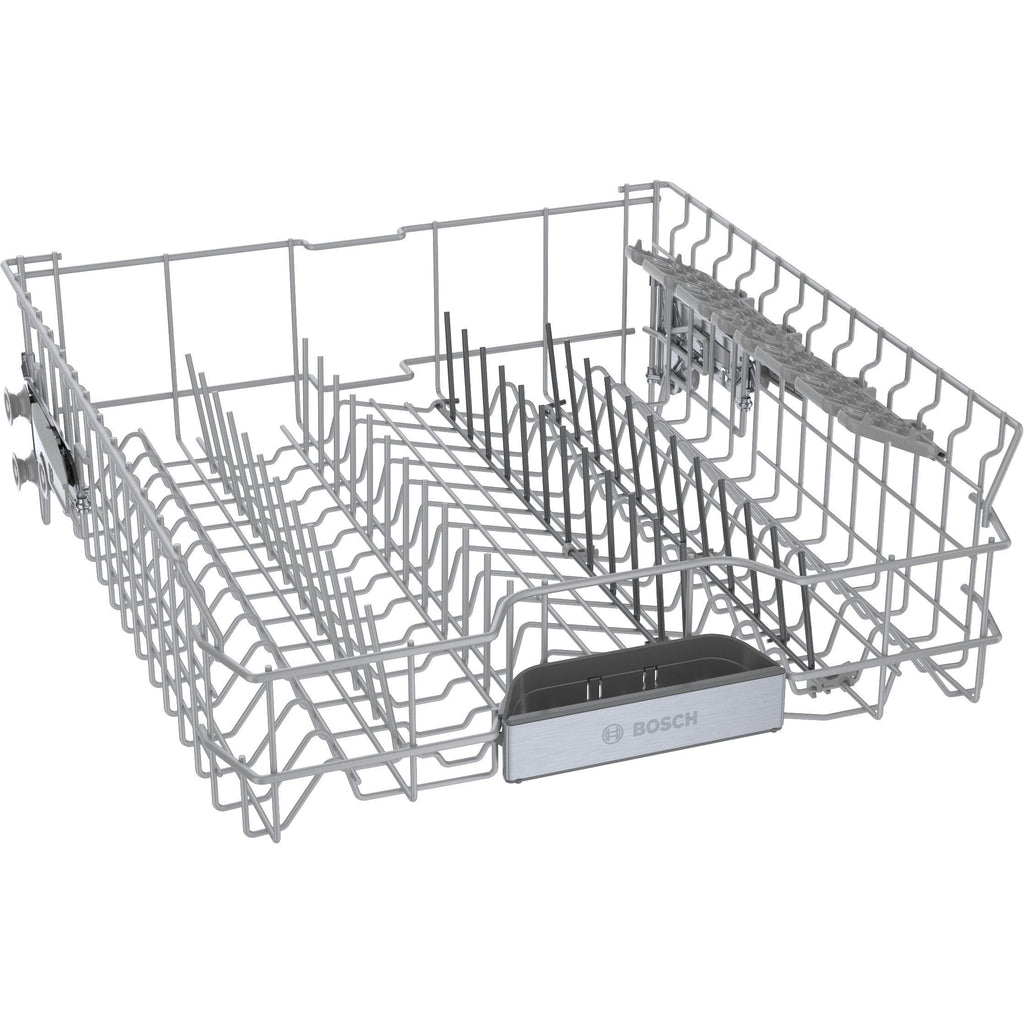

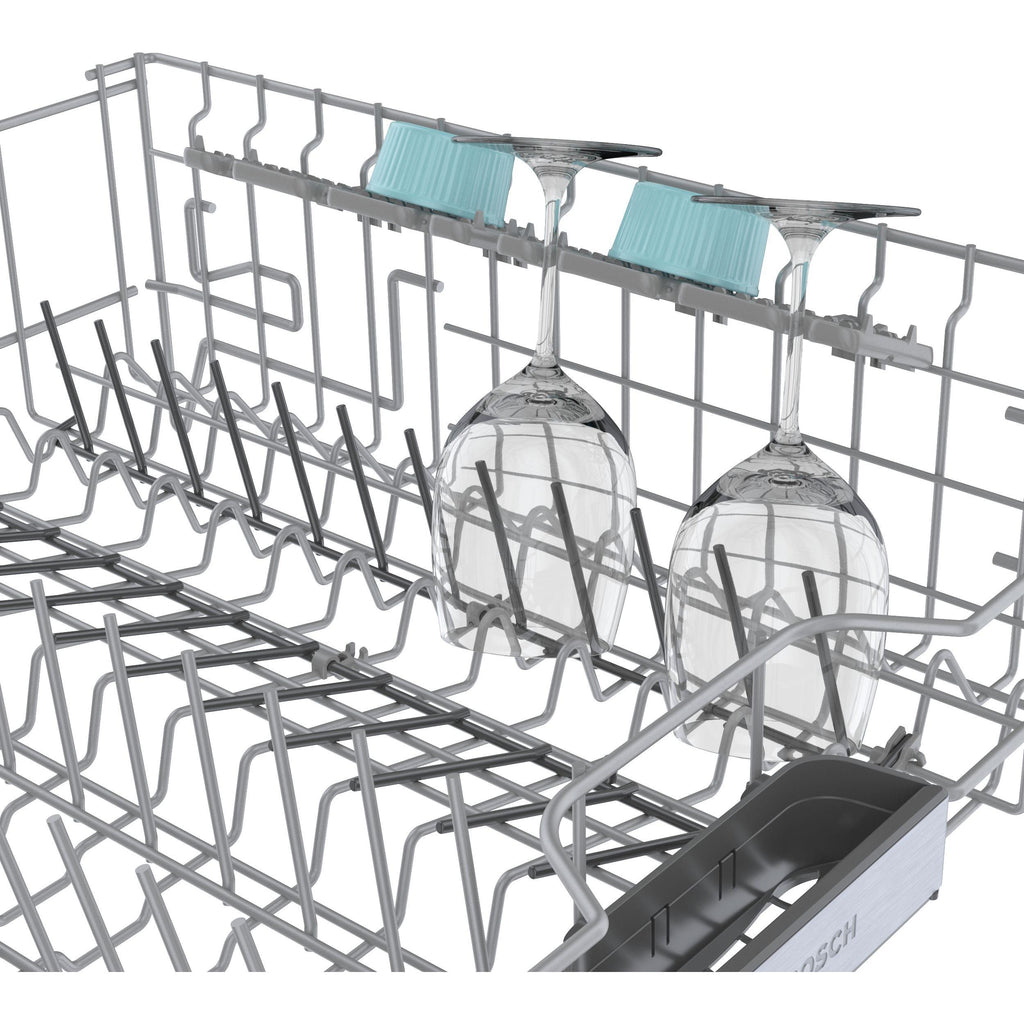

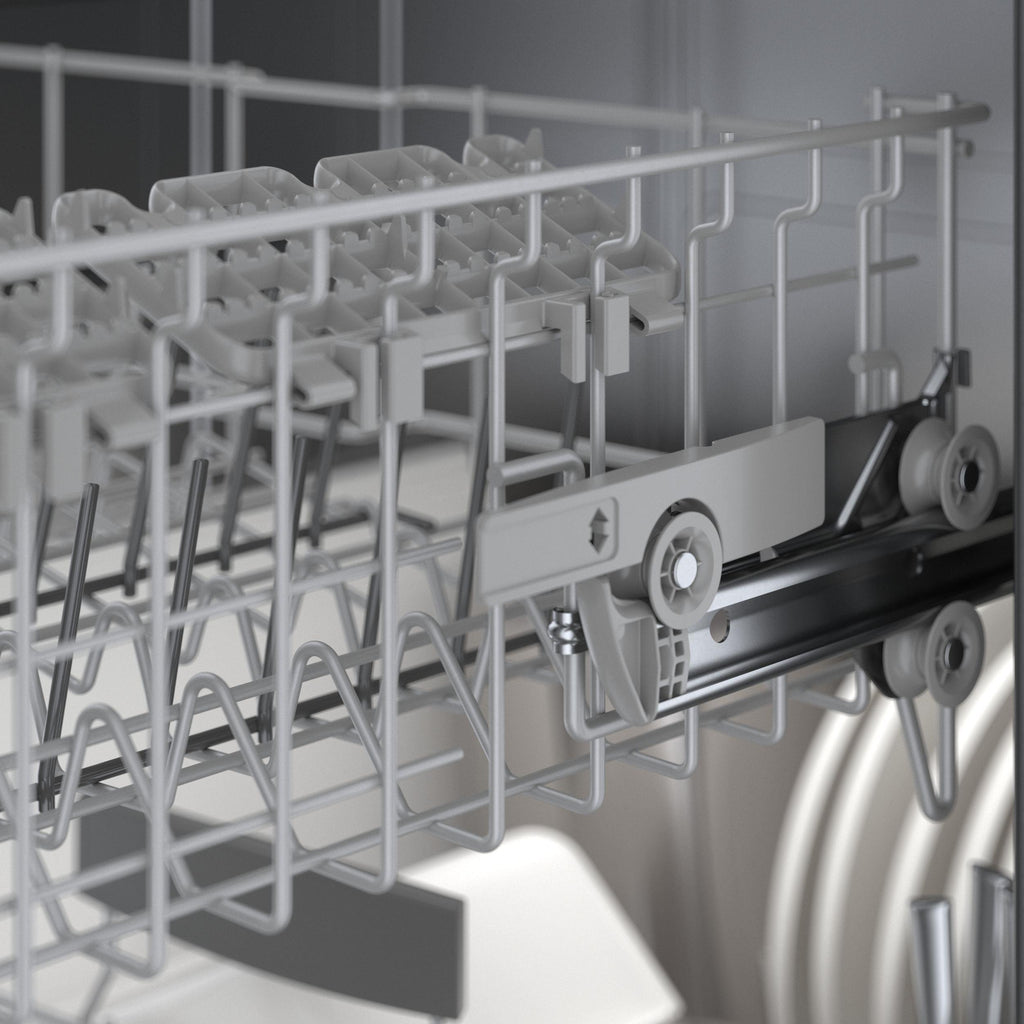

RACKMATIC™ ADJUSTABLE UPPER RACK
The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
PRECISIONWASH® WITH POWERCONTROL™
Patented PowerControl™ spray arm enhances PrecisionWash® performance to target your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack. No more scrubbing, rinsing, or hand washing.
CRYSTALDRY™
Patented CrystalDry™ technology transforms moisture into heat up to 176°F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished.
*Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type.
*Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type.
Additional Features
HOME CONNECT™.
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Number of wash cycles: 5 + 3 additional in Home Connect®
• Intensive
• Auto
• Economy
• Quick L
• Custom program
• Intensive
• Auto
• Economy
• Quick L
• Custom program
Options
Number of options: 4 + 2 additional in Home Connect®:
• HygienePlus
• Remote Start
• Zeo Dry
• HygienePlus
• Remote Start
• Zeo Dry
Features
Technologies
• Wash system: PrecisionWash® with PowerControl™
• Drying system: CrystalDry™
• Rack adjustability: Rackmatic®
• Leak protection system: 24/7 AquaStop®
• Home Connect® (WiFi enabled)
• Drying system: CrystalDry™
• Rack adjustability: Rackmatic®
• Leak protection system: 24/7 AquaStop®
• Home Connect® (WiFi enabled)
3rd Rack System
Yes
Control Lock
Yes

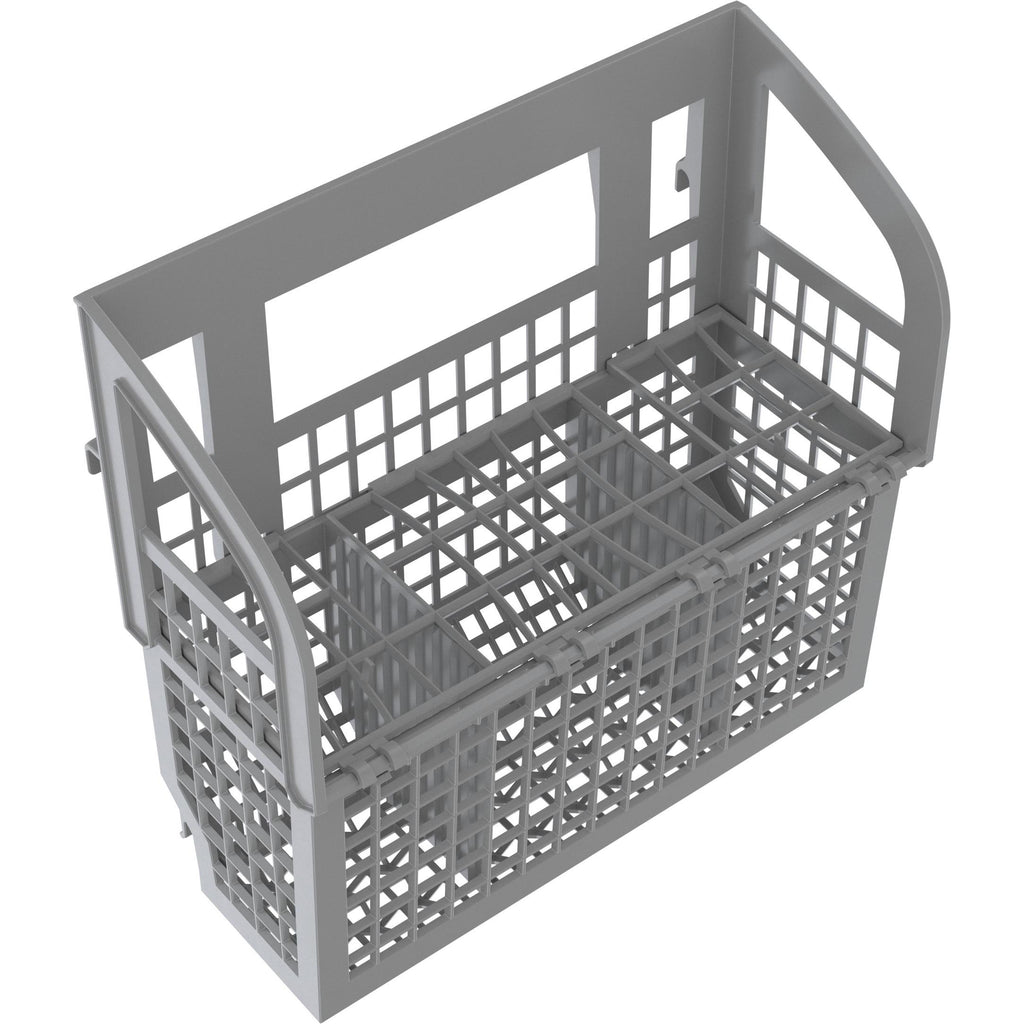

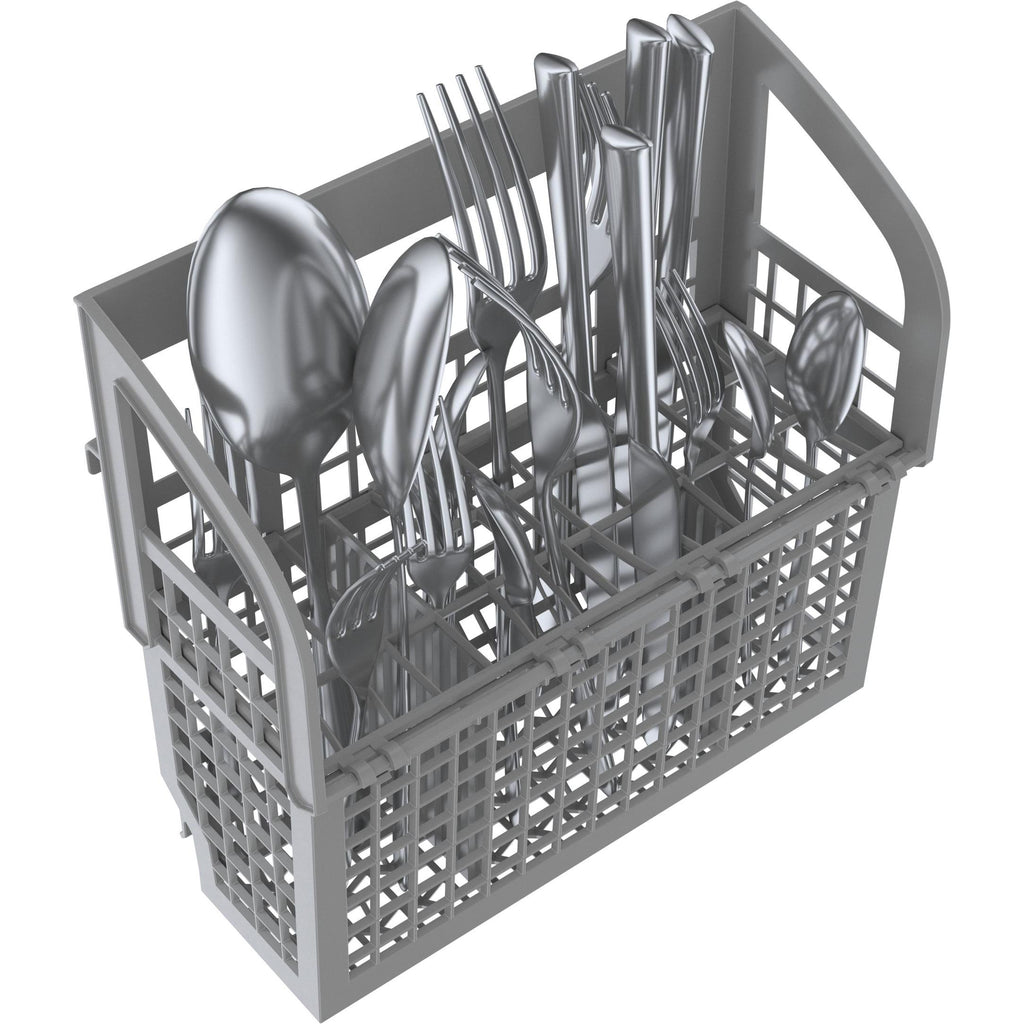

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information

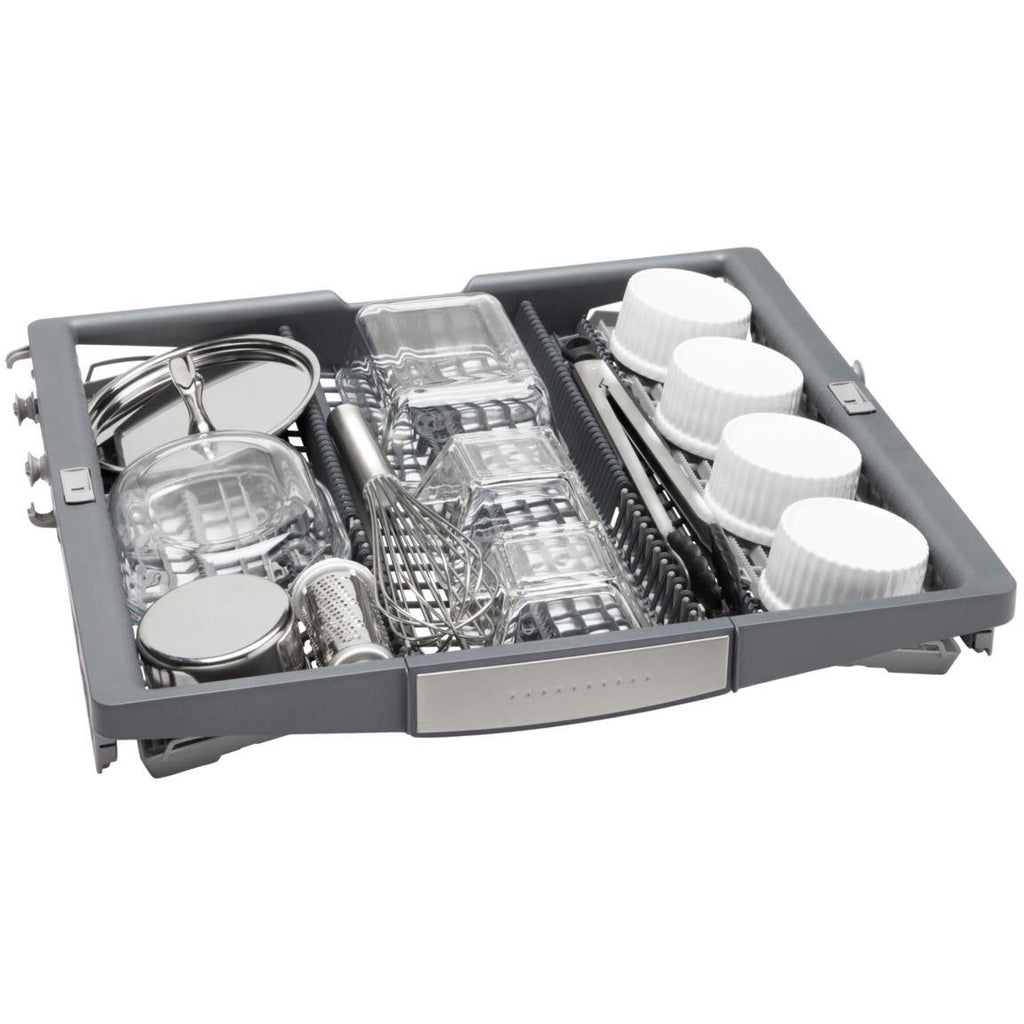

• Third rack: Flexible 3rd Rack

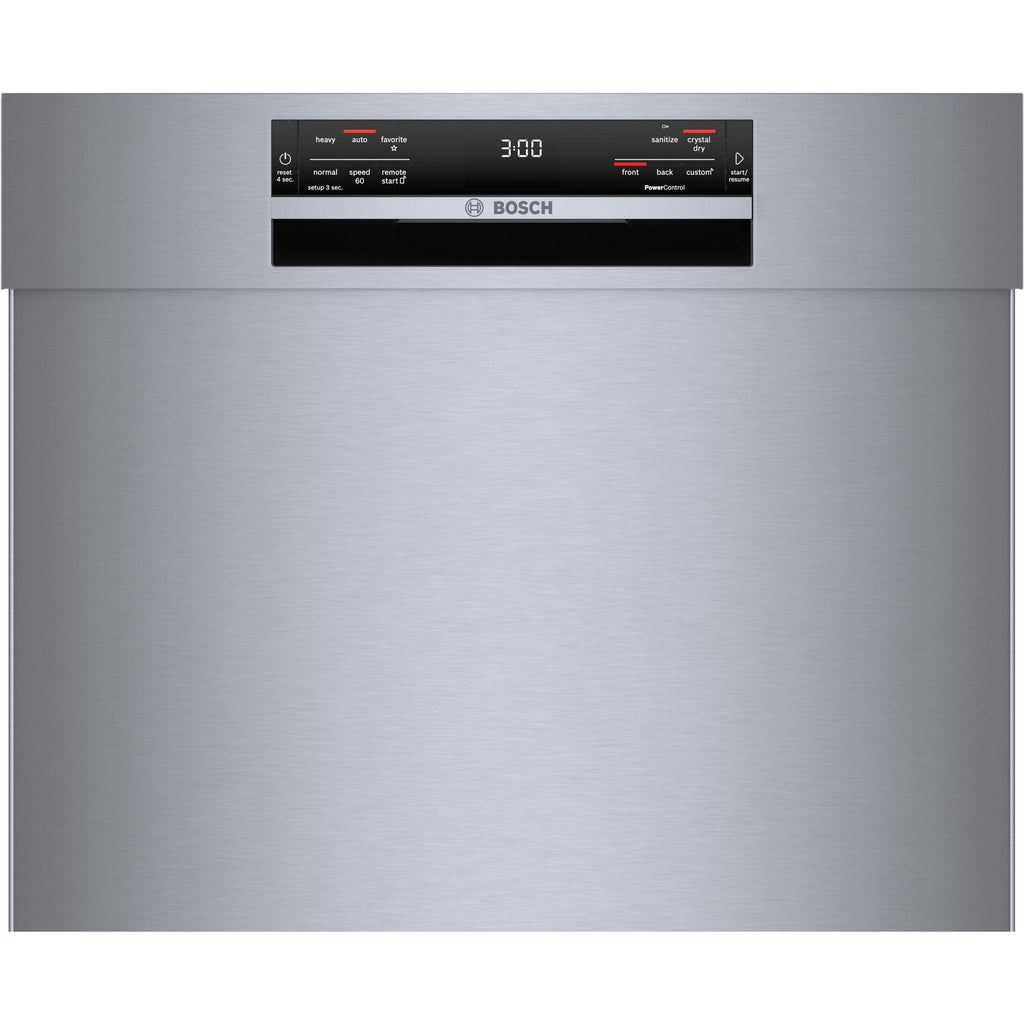

• Control type: Touch Controls
• Concealed water heating element
• Drying system: Inherent heat, Zeolite
• Five-level wash
• Child Lock button suspension
• Anti-Fingerprint Finish
• Water usage per cycle: 3.2 gal
• Minimum water pressure: 14 lb/sin
• Status display
• Time remaining indicator front
• Water inlet
• Control type: Touch Controls
• Concealed water heating element
• Drying system: Inherent heat, Zeolite
• Five-level wash
• Child Lock button suspension
• Anti-Fingerprint Finish
• Water usage per cycle: 3.2 gal
• Minimum water pressure: 14 lb/sin
• Status display
• Time remaining indicator front
• Water inlet
Electrical Information
Information
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Total annual energy consumption: 240 kWh
• Plug type: Nema5-15P
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Total annual energy consumption: 240 kWh
• Plug type: Nema5-15P
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Supply Hose Kit with Elbow: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Supply Hose Kit with Elbow: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Height (Min.)
33.87 inch(es) / 86.04 cm
Depth (Including Handle)
23.75 inch(es) / 60.33 cm
Weight
95.99 lb(s) / 43.54 kg
Additional Dimensions
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
• Length outlet hose: 78 3/4"
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45" / Right – 56"
• Length outlet hose: 78 3/4"
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45" / Right – 56"
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
825225965329
