Specifications
General
Series Name
500 Series
Type
Built-In
Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
38 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Program 1: Heavy (water consumption 4.9-6.4 gal)
• Program 2: Auto (water consumption 3.4-6.4 gal)
• Program 3: Economy (water consumption 2.4-6.9 gal)
• Program 4: Speed60® (water consumption 3.8 gal)
• Program 5: Custom program (water consumption 3.4-6.4 gal)
• Program 2: Auto (water consumption 3.4-6.4 gal)
• Program 3: Economy (water consumption 2.4-6.9 gal)
• Program 4: Speed60® (water consumption 3.8 gal)
• Program 5: Custom program (water consumption 3.4-6.4 gal)
Options
• Extra dry
• HygienePlus
• Remote Start
• HygienePlus
• Remote Start
Features
Technologies
Home Connect™: Remote Monitoring and Control

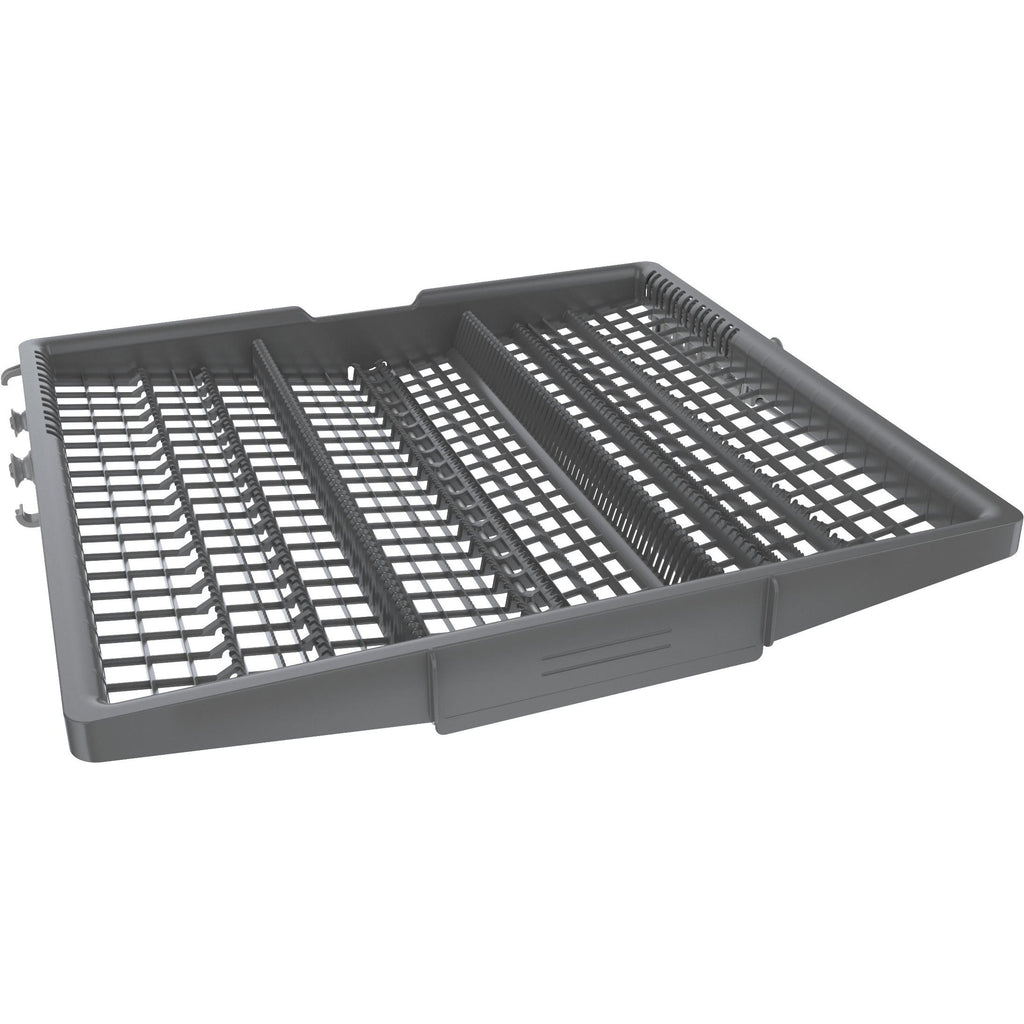

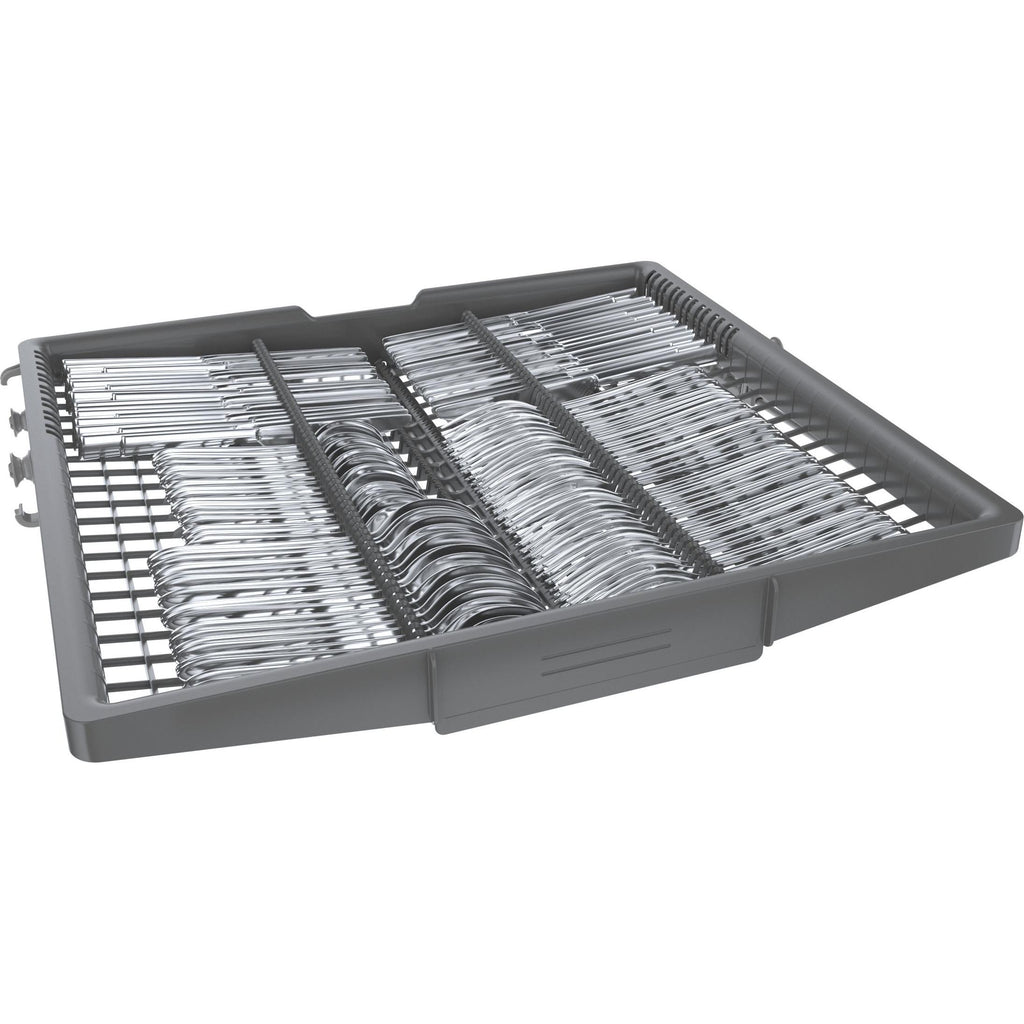

3rd Rack System
Yes
Cutlery Tray
Yes

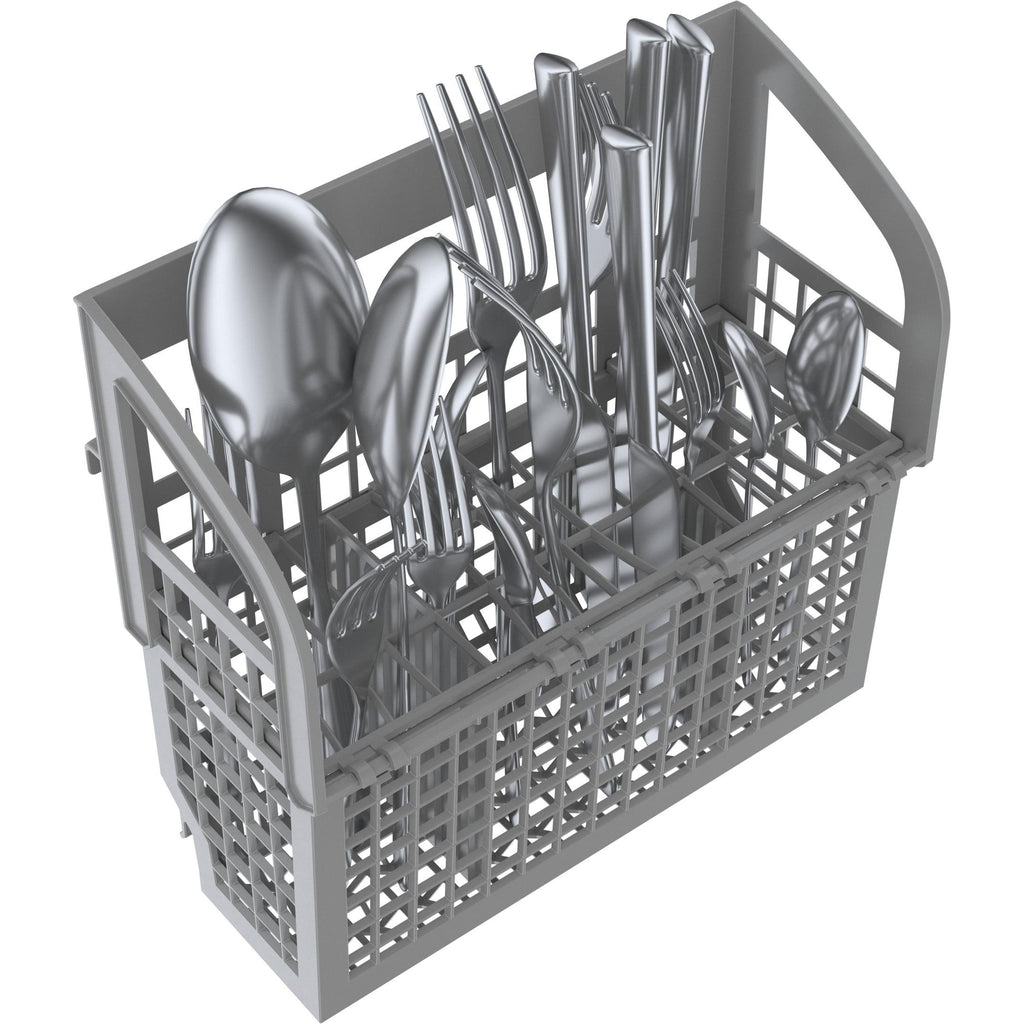

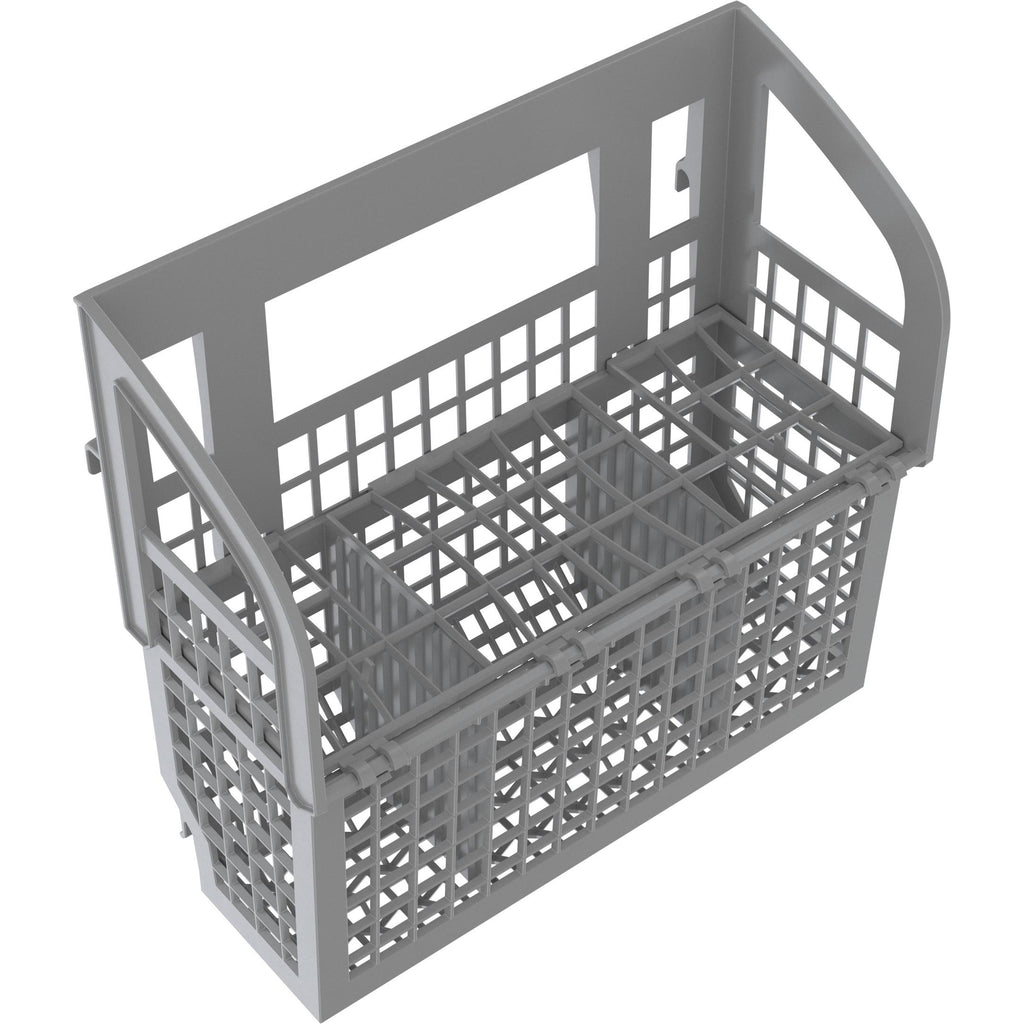

Silverware Basket
Yes
Additional Information
• Tub type: Tall Tub
• Color / Material housing: Lacquered
• Concealed heating element
• Status indicator: End of program audible, Time remaining indic. internal
• Number of different wash temperatures: 5
• Maximum temperature for water intake: 60 °C
• Color / Material housing: Lacquered
• Concealed heating element
• Status indicator: End of program audible, Time remaining indic. internal
• Number of different wash temperatures: 5
• Maximum temperature for water intake: 60 °C
Electrical Information
Information
• Watts: 1440 W
• Fuse protection: 12 A
• Volts: 120 V
• Frequency: 60 Hz
• Energy Consumption: 269 kWh
• Plug type: Nema5-15P
• Fuse protection: 12 A
• Volts: 120 V
• Frequency: 60 Hz
• Energy Consumption: 269 kWh
• Plug type: Nema5-15P
Accessories
Optional
• SGZ1010UC: Drain hose extension kit
• SMZ3IN1UC: Dish Install Accessory Kit
• SMZ4000UC: Silverware basket US Duo
• SMZ5000: Dishwashing aid set
• SMZEPCC1UC: Cabinet protector with power cord clips
• SMZPCJB1UC: Powercord with Junction Box
• SMZSH1ABUC: Supply Hose with Elbow
• SMZ3IN1UC: Dish Install Accessory Kit
• SMZ4000UC: Silverware basket US Duo
• SMZ5000: Dishwashing aid set
• SMZEPCC1UC: Cabinet protector with power cord clips
• SMZPCJB1UC: Powercord with Junction Box
• SMZSH1ABUC: Supply Hose with Elbow
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.84 cm
Weight
92 lb(s) / 41.73 kg
Additional Dimensions
• Height: 33.88"
• Required cutout size (HxWxD): 33 7/8" x 23 9/16" x 24"
• Power cord length: 67" (170.0 cm)
• Length outlet hose: 78 3/4"
• Product packaging dimensions (HxWxD): 35 3/4" x 26" x 29 5/16"
• Required cutout size (HxWxD): 33 7/8" x 23 9/16" x 24"
• Power cord length: 67" (170.0 cm)
• Length outlet hose: 78 3/4"
• Product packaging dimensions (HxWxD): 35 3/4" x 26" x 29 5/16"
UPC
UPC#
825225972655
